Ribbon Blender

Horizontal U-trough blenders for powders and granules. Every unit is built in food-grade stainless steel, inspected before shipment, and exported with documentation handled by our Hong Kong office.

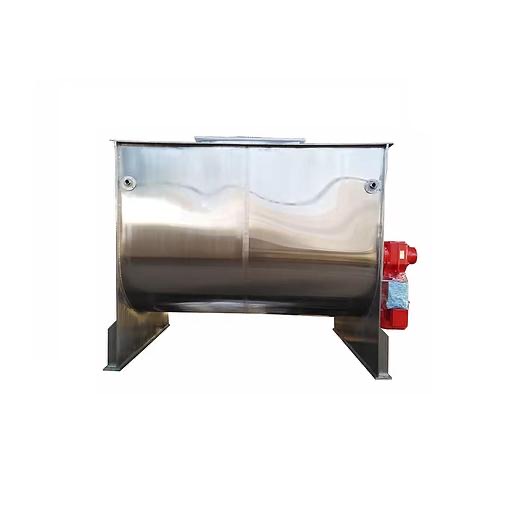

Ribbon Blender

Ribbon Blender

Horizontal ribbon blenders for consistent dry powder and light paste mixing across food, nutraceutical, pharmaceutical, chemical, and cosmetic production.

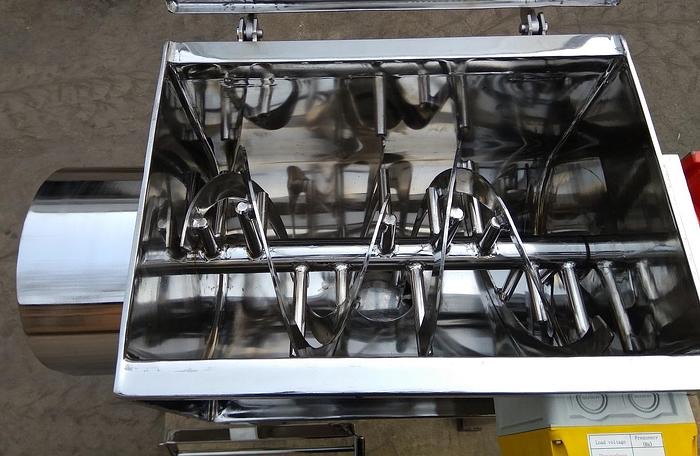

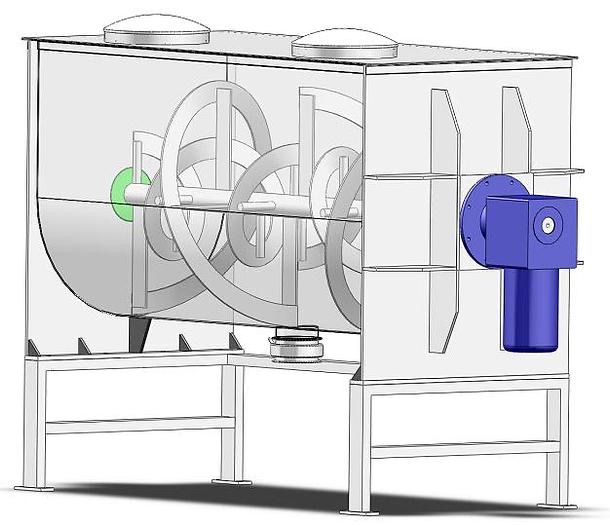

Each unit is built around a U-trough vessel, double helical ribbon agitator, stainless steel shafting, sealed discharge, and safety interlocks for dependable batch operation.

  • 304 or 316 stainless steel product-contact construction with sanitary polished finishes

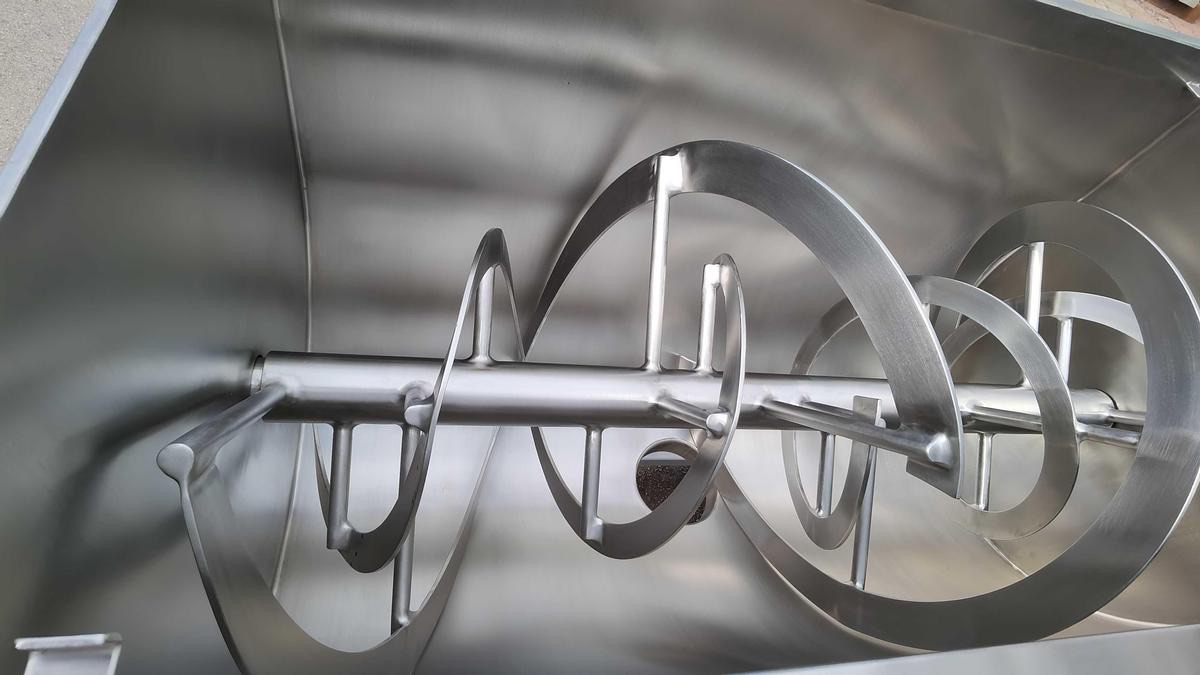

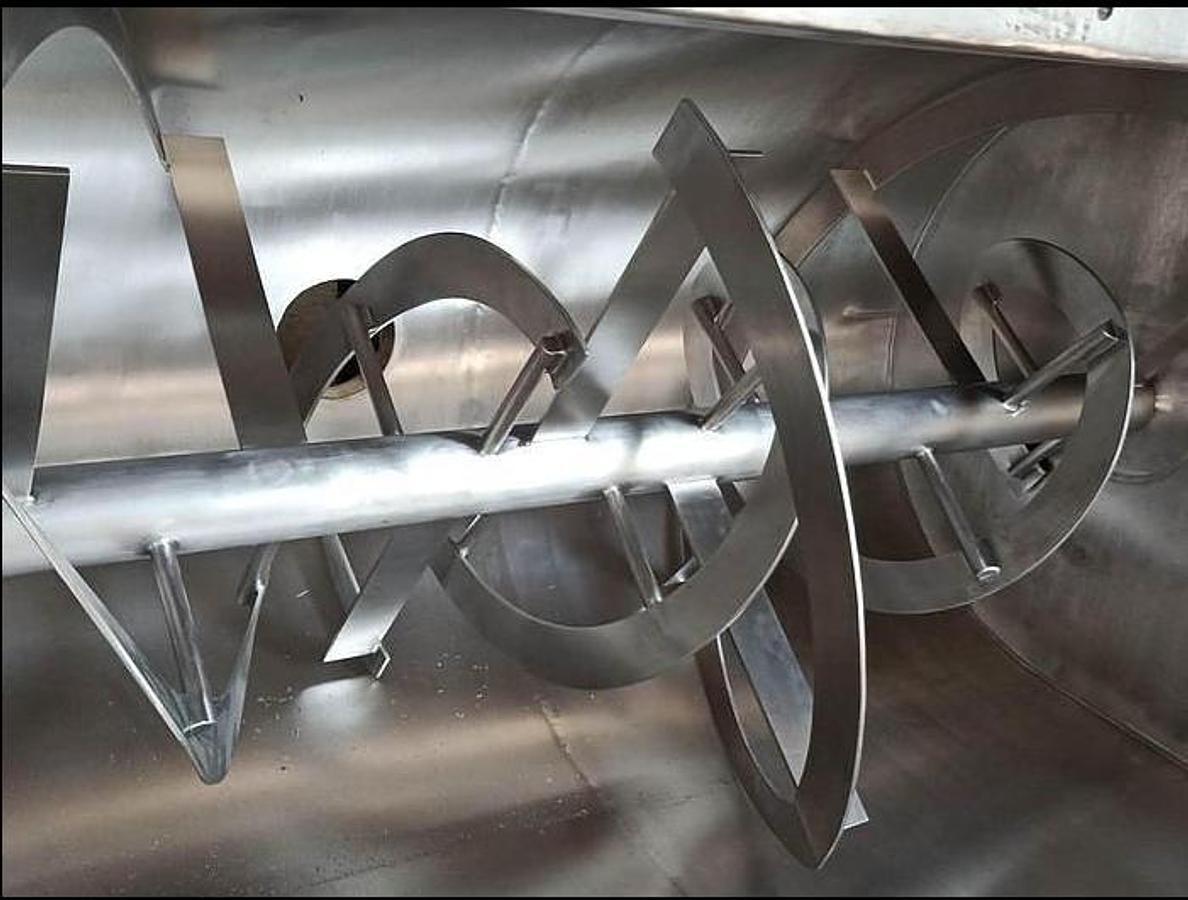

  • Double ribbon agitator moves material in opposing directions for fast, even blending
  • Manual or pneumatic center discharge options for controlled unloading
  • Safety grates, limit switches, and sealed shaft design support safer operation
  • Optional liquid spray, air purge, CIP, and custom jacket configurations available
Material
304 or 316 stainless steel
Drive
SEW or NORD direct reducer drive
Discharge
Manual or pneumatic center discharge
Finish
High-polished sanitary finish
Legs
Adjustable stainless steel legs
Request a Quote

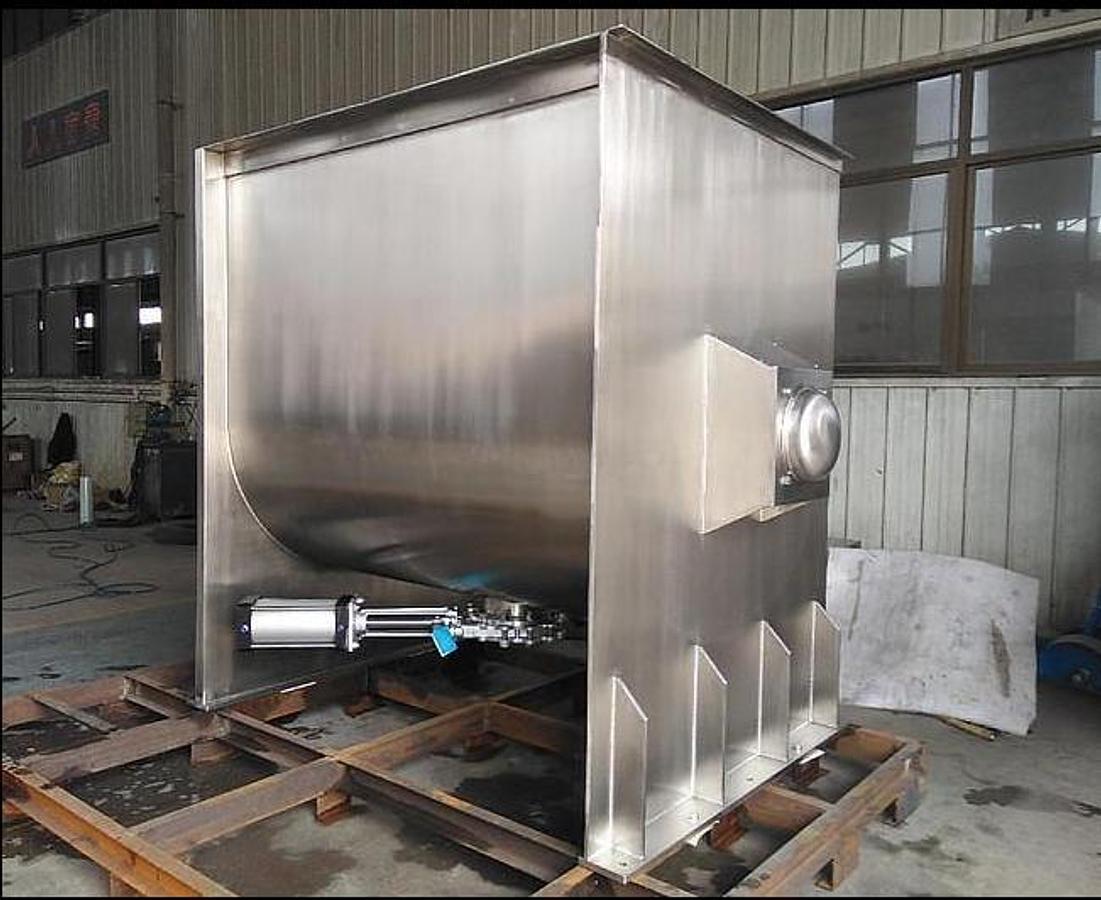

200 Cu. Ft Ribbon Blender

200 Cu. Ft Ribbon Blender

A 200 cu. ft. industrial ribbon blender for high-volume powder and granular ingredient blending.

The U-trough vessel, double ribbon agitator, SEW Eurodrive reducer, pneumatic knife valve, and remote VFD controller are configured for production-scale batching with controlled discharge.

  • 223 cu. ft. total vessel volume with 200 cu. ft. working capacity
  • 304 stainless steel product-contact surfaces with #4 internal finish
  • Counterbalanced hinged cover, fixed loading grate, and safety interlock provisions
  • Pneumatic knife valve and 66 in. discharge height for plant integration

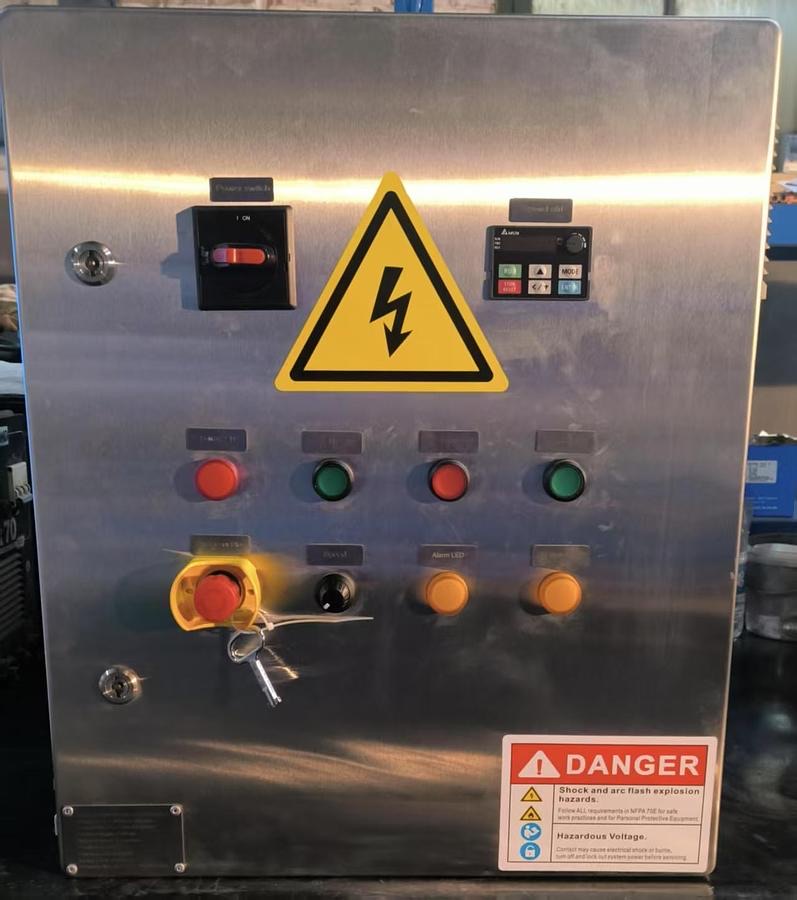

  • Spray/CIP line, air draft ports, load cells, and remote NEMA-4 controller included
Material
Stainless steel 304
Safety
Safety grates, safety limit switches (prevents operation when grates are raised)
Advantage
Diretc. drive, Solid shafts, Air Purge, Split ring seal housing
Warranty
2 years
Request a Quote

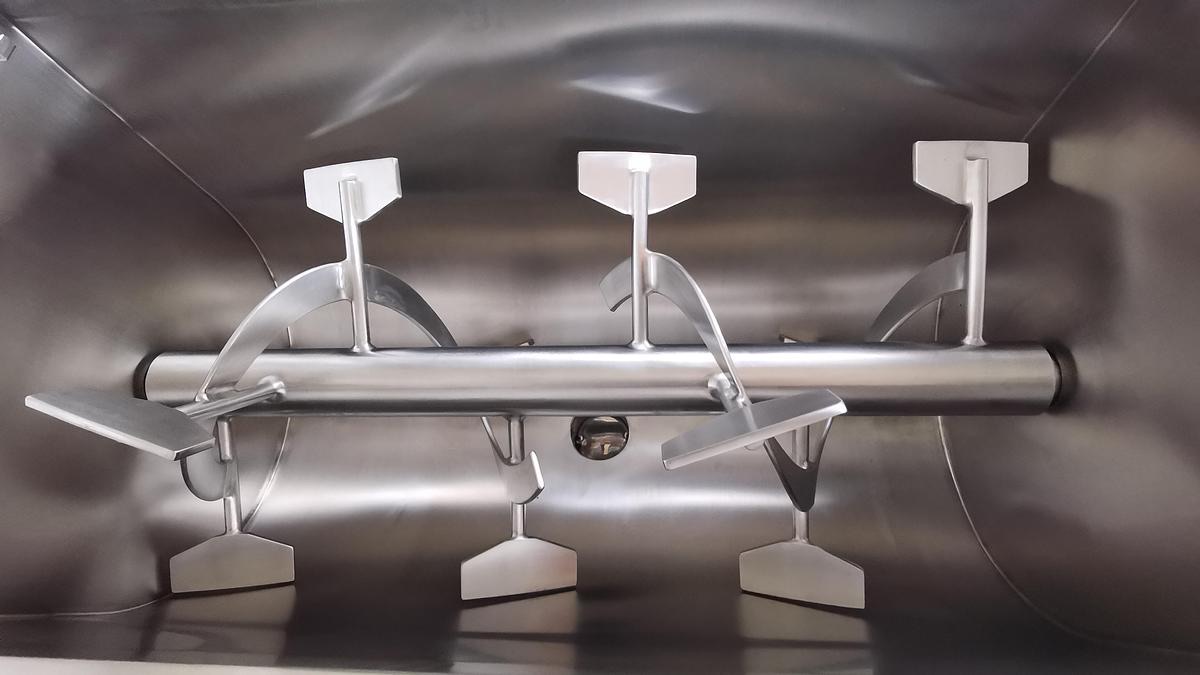

10 cu. ft. Custom Paddle & Ribbon Blender

10 cu. ft. Custom Paddle & Ribbon Blender

A compact 10 cu. ft. paddle and ribbon blender for sanitary powder, granule, and light liquid blending.

The polished SUS304 contact surfaces, solid stainless shaft, VFD speed control, and spray balls make it a practical fit for small-batch production and process development.

  • SUS304 stainless steel construction with RA25 sanitary product-contact finish
  • Paddle and ribbon mixing action for powders, granules, and liquid additions
  • 7.5 HP UL-listed drive with VFD speed control
  • Centered 4 in. discharge, air purge, and split-ring seal housing
  • Safety grate interlock, emergency stop, overcurrent protection, and caster base
Material
Stainless steel 304
Safety
Safety grates, safety limit switches (prevents operation when grates are raised)
Advantage
Diretc. drive, Solid shafts, Air Purge, Split ring seal housing
Warranty
2 years
Package size
79"x33"x71" 2204lbs
Surface treatment
Sanitary internal polished finish; external sandblasting
Caster
Yes
Request a Quote

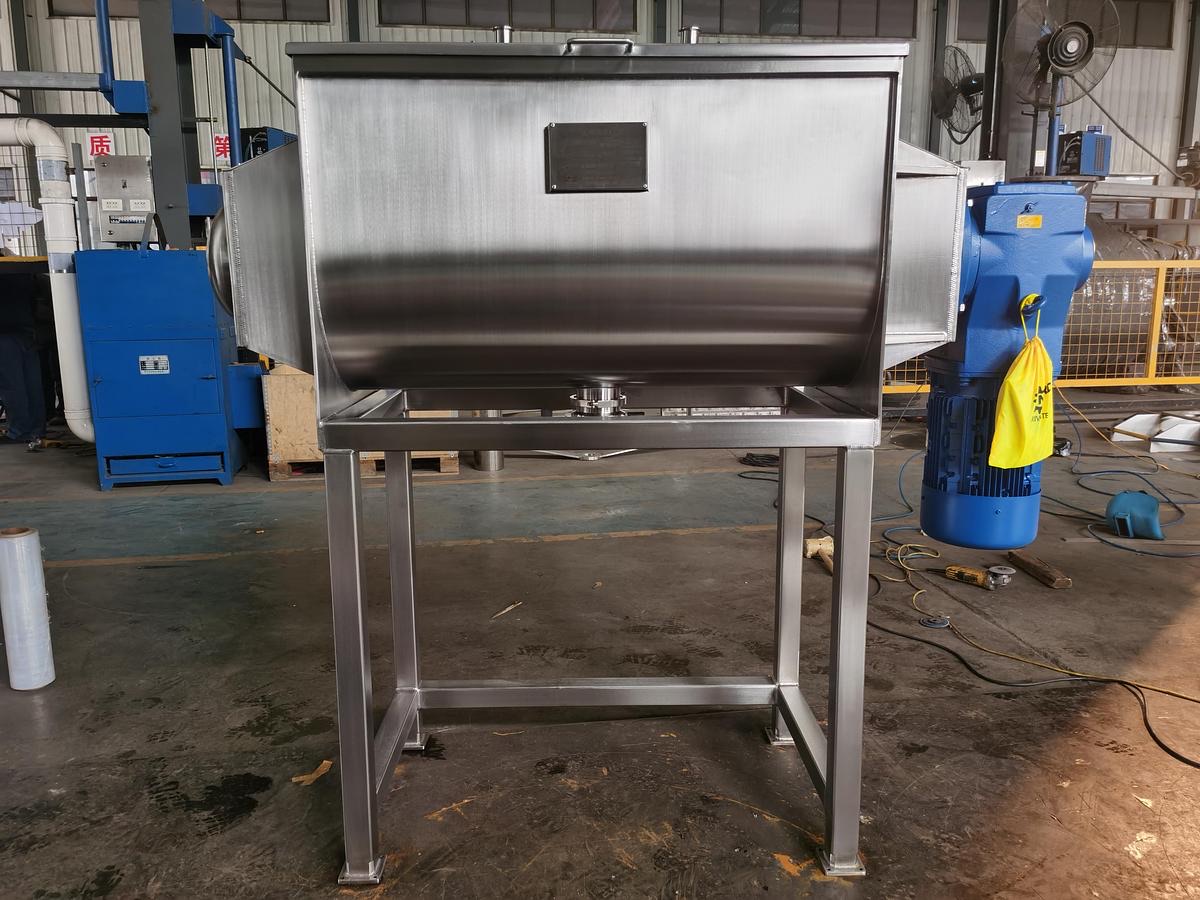

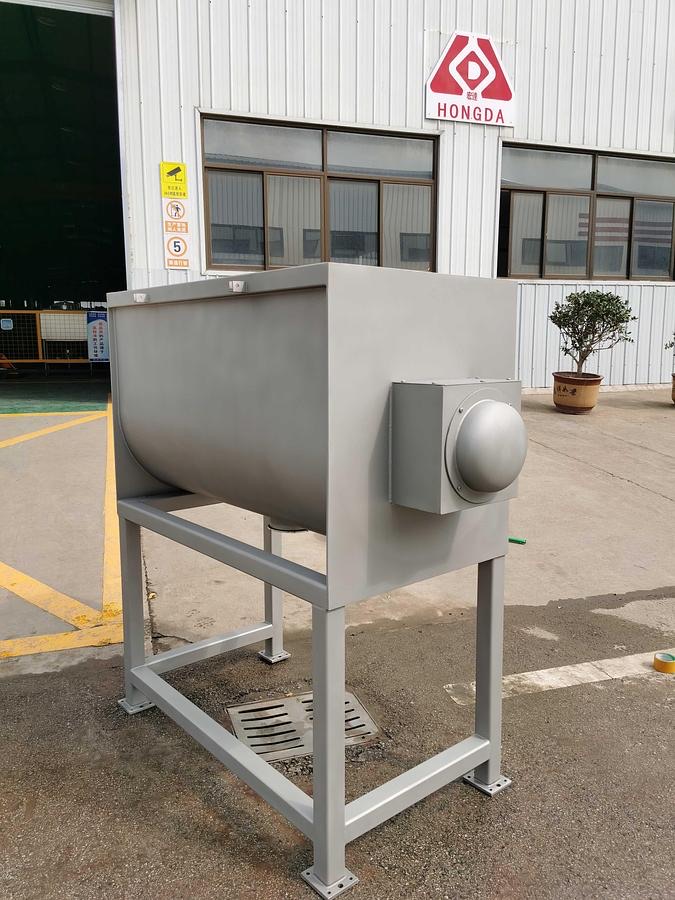

20 Cu. Ft Ribbon Blender

20 Cu. Ft Ribbon Blender

A 20 cu. ft. ribbon blender for mid-size powder and liquid blending batches.

The stainless U-trough, solid shaft, VFD-controlled drive, and centered discharge are designed for repeatable sanitary production.

  • SUS304 stainless steel contact construction with sanitary polished interior
  • Double ribbon mixing element for powders, granules, and liquid additions
  • 12 HP UL-listed three-phase drive with VFD speed adjustment
  • 6 in. centered discharge with split-ring seal housing and air purge
  • Safety grate interlock, emergency stop, and overcurrent protection
Material
Stainless steel 304
Safety
Safety grates, safety limit switches (prevents operation when grates are raised)
Advantage
Diretc. drive, Solid shafts, Air Purge, Split ring seal housing
Surface treatment
Inner side: #4 finish, outer: sandblasted
Request a Quote

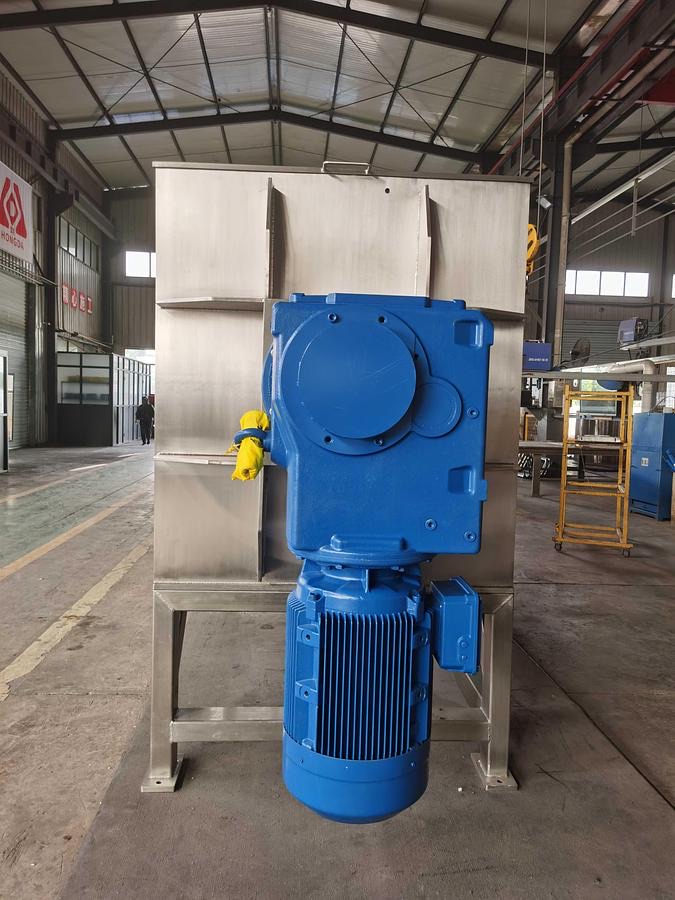

300 Cu. Ft. Ribbon Blender

300 Cu. Ft. Ribbon Blender

A 300 cu. ft. heavy-duty ribbon blender for large production batches of powders and liquid-added blends.

The machine combines sanitary stainless construction with a 60 HP drive, center discharge, and operator safety controls for demanding plant environments.

  • SUS304 stainless steel material with RA25 sanitary contact finish
  • Large-capacity U-trough with solid stainless main shaft
  • 60 HP UL-listed three-phase drive with VFD speed control
  • 10 in. centered discharge for efficient unloading
  • Safety grate interlock, emergency stop, overcurrent protection, and air-purged seals
Material
Stainless steel 304
Safety
Safety grates, safety limit switches (prevents operation when grates are raised)
Advantage
Diretc. drive, Solid shafts, Air Purge, Split ring seal housing
Warranty
2 years
Request a Quote

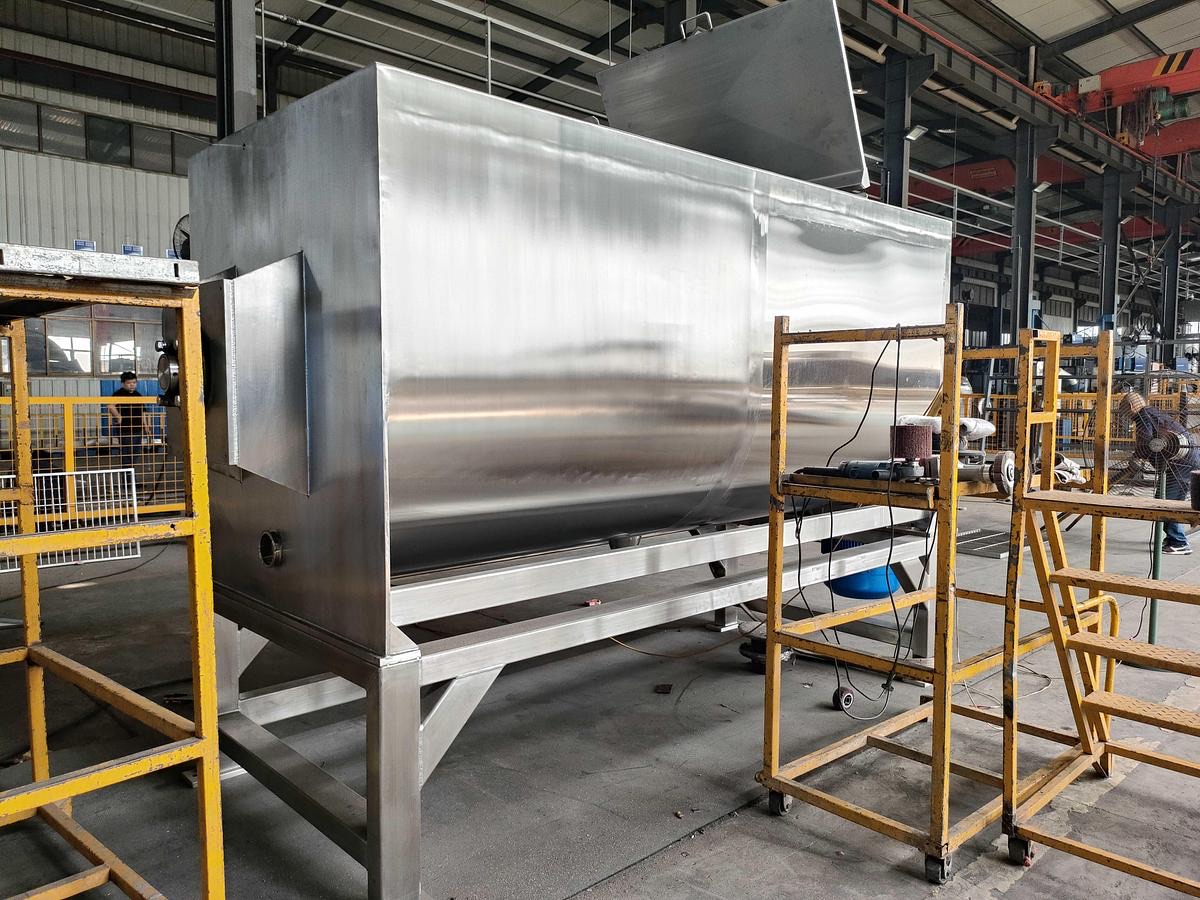

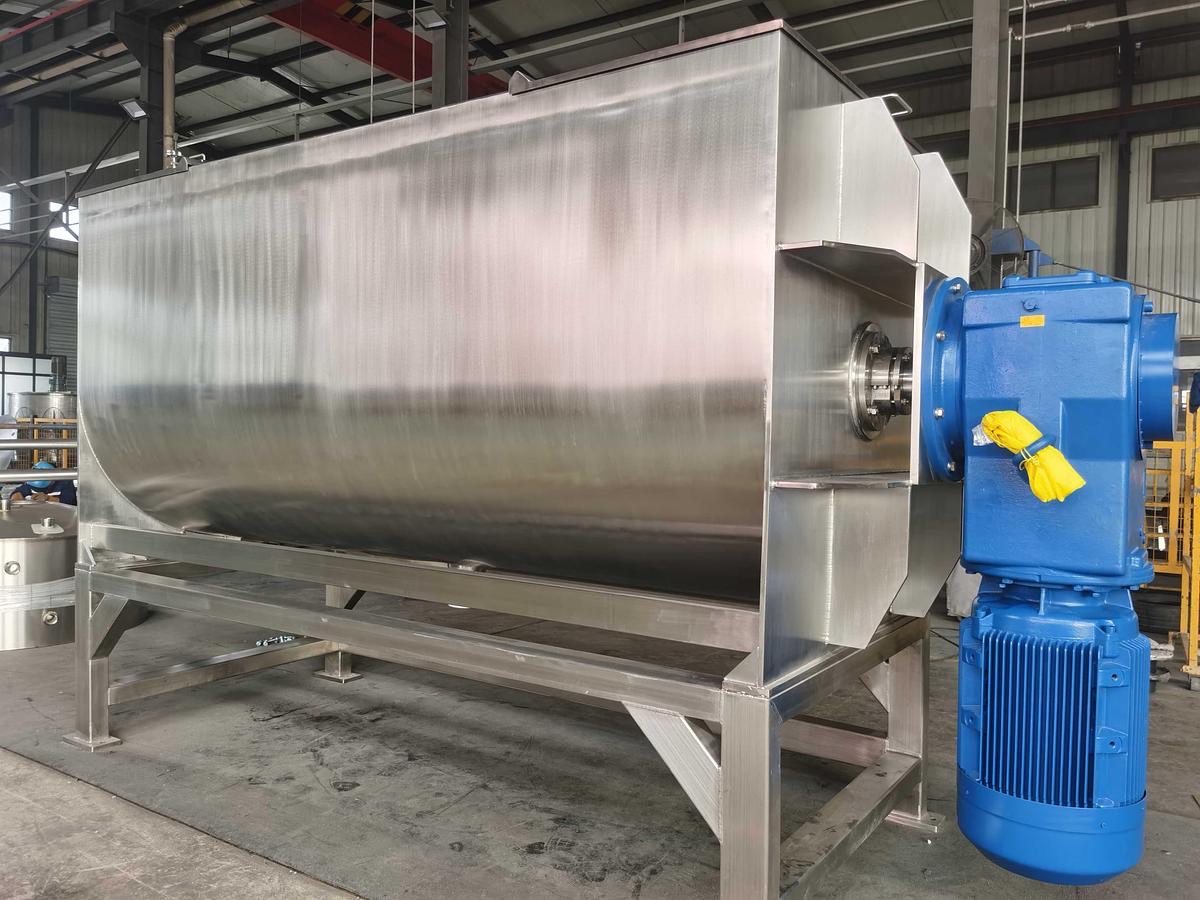

135 cu. ft. Insulated Ribbon Blender

135 cu. ft. Insulated Ribbon Blender

A customized 135 cu. ft. insulated ribbon blender for temperature-sensitive powder or paste blending.

The insulated U-body, stainless product-contact surfaces, and production-duty drive support larger batches where heat retention or process stability matters.

  • SS316L product-contact surfaces with SS304 non-contact construction
  • 2 in. rock wool insulation with stainless outer sheathing
  • Solid stainless main shaft and centered discharge
  • UL-listed three-phase drive with controller
  • Safety grate interlock and emergency stop for operator protection
Material
SS316L for product contact surface, others SS304 material
Advantage
Diretc. drive, Solid shafts, Air Purge, Split ring seal housing
Warranty
2 years
Delivery time
3 months
Payment terms
50% deposit, 50% Net 30 days
Request a Quote

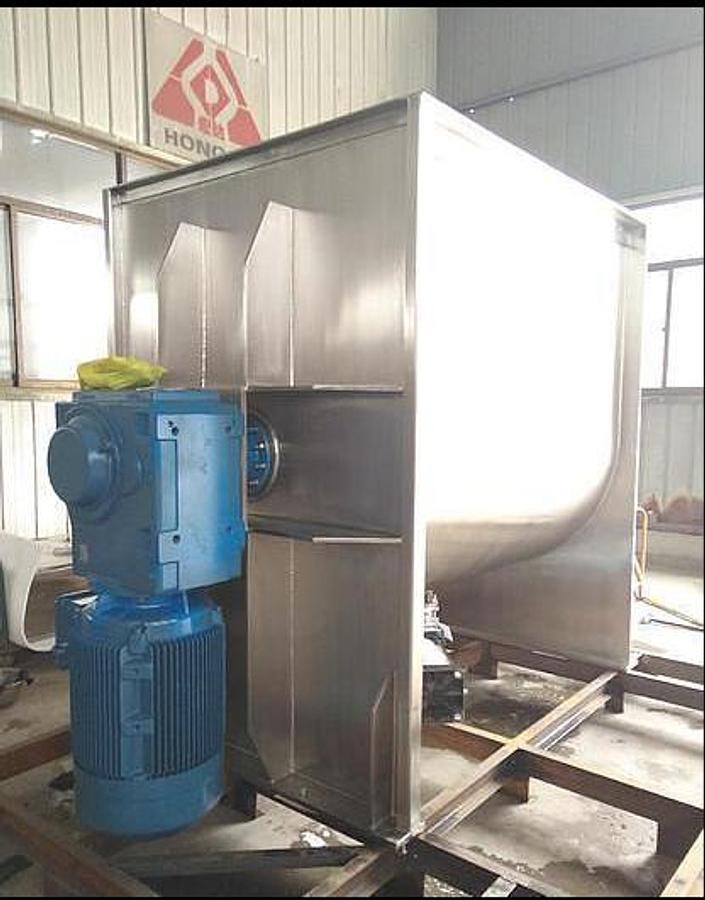

300 cu. ft. Ribbon Blender SS316L

300 cu. ft. Ribbon Blender SS316L

A 300 cu. ft. ribbon blender with SS316L product-contact areas for corrosive, high-value, or hygiene-sensitive blends.

The design pairs large-batch capacity with sanitary finish, a 60 HP drive, center discharge, and safety controls.

  • SS316L product-contact areas with 304 stainless steel non-contact parts
  • RA25 sanitary finish on contact surfaces and welds
  • 60 HP UL-listed three-phase drive with VFD speed adjustment
  • 10 in. centered discharge with air purge and split-ring seal housing
  • Safety grate interlock, emergency stop, and overcurrent protection
Material
Stainless steel 304
Safety
Safety grates, safety limit switches (prevents operation when grates are raised)
Advantage
Diretc. drive, Solid shafts, Air Purge, Split ring seal housing
Warranty
2 years
Request a Quote

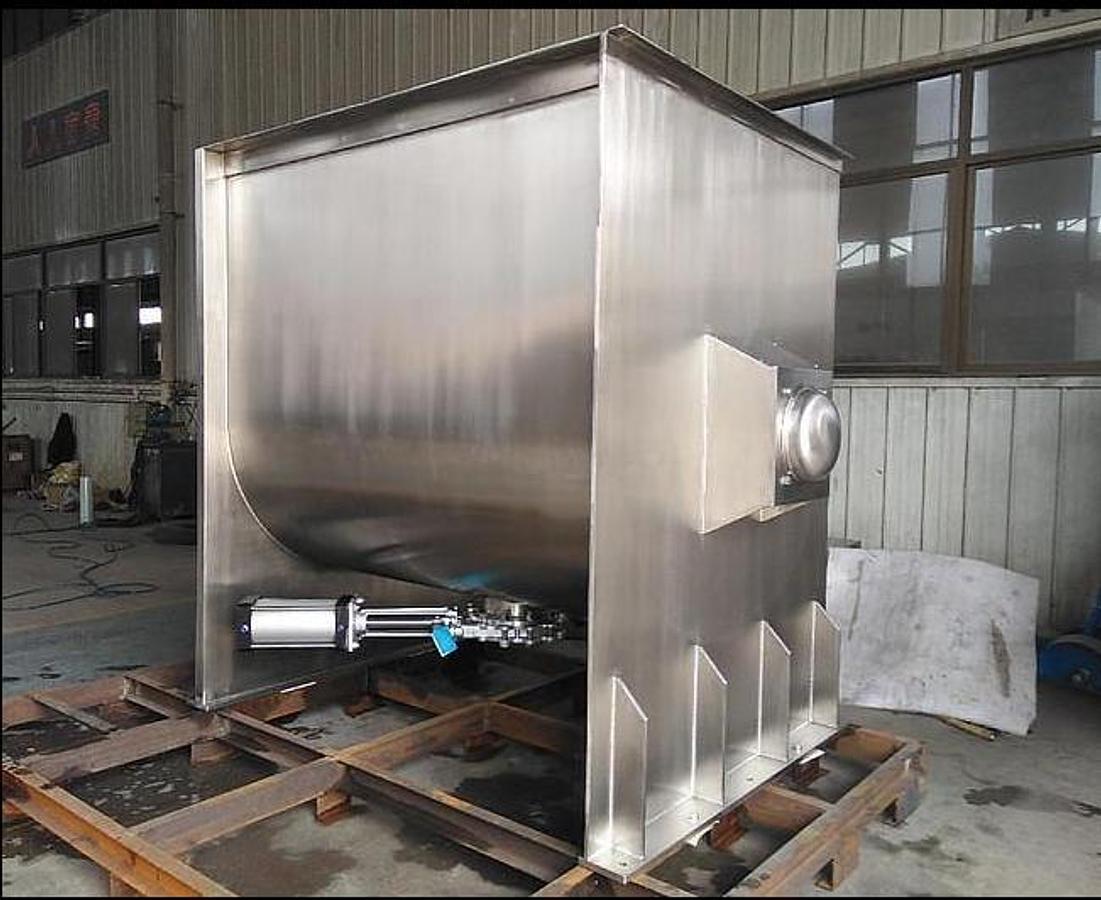

80 cu. ft. SS304 Ribbon Blender

80 cu. ft. SS304 Ribbon Blender

An 80 cu. ft. SS304 ribbon blender for production batches of powders, granules, and liquid-added mixes.

The stainless U-trough, solid shaft, pneumatic discharge valve, and VFD drive provide a clean, reliable blending platform.

  • SUS304 stainless steel material with sanitary contact finish

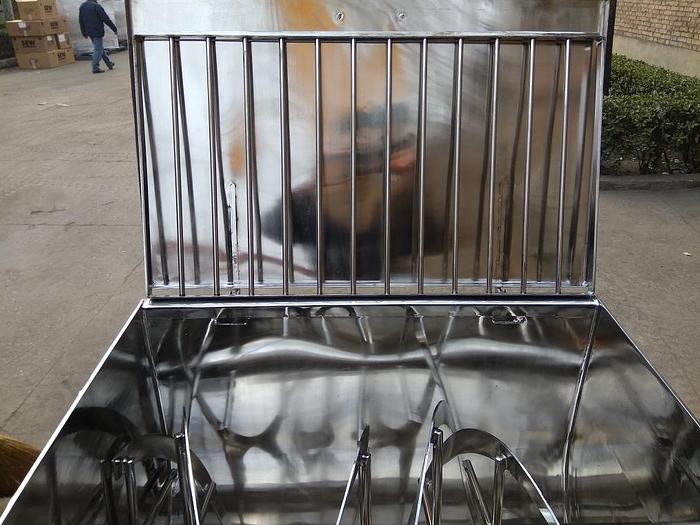

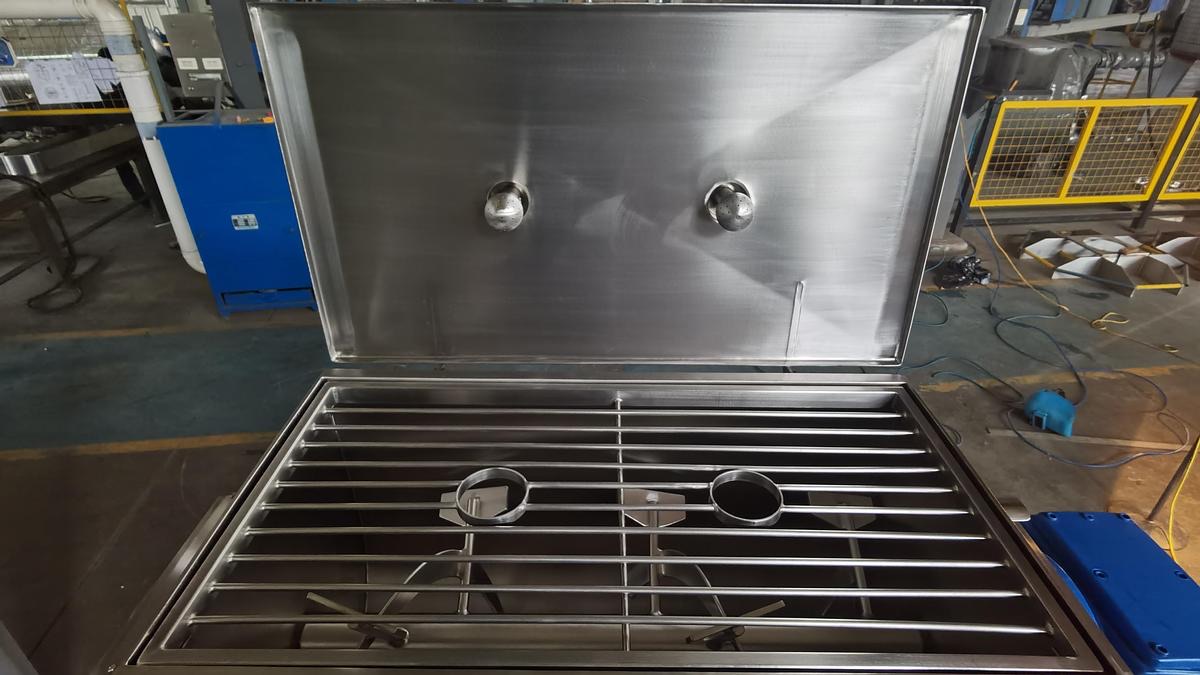

  • Solid stainless steel main shaft and stainless lid with safety grate
  • 8 in. pneumatic center discharge valve
  • 25 HP 460V UL-listed three-phase drive with VFD control
  • Air purge, split-ring seal housing, safety interlock, emergency stop, and overcurrent protection
Material
Stainless steel 304
Safety
Safety grates, safety limit switches (prevents operation when grates are raised)
Advantage
Diretc. drive, Solid shafts, Air Purge, Split ring seal housing
Warranty
2 years
Request a Quote

Tell us what you produce.

Send your capacity, material and voltage requirements. We reply with options, drawings and pricing.
