Jacketed Kettle

Steam and electric kettles for industrial cooking. Every unit is built in food-grade stainless steel, inspected before shipment, and exported with documentation handled by our Hong Kong office.

Jacketed Kettle

Jacketed Kettle

Steam and electric jacketed kettles for cooking, heating, mixing, and holding sauces, soups, jams, confectionery, and prepared foods.

Hemispherical and tilting designs are available with scraper, paddle, high-shear, or bare-kettle configurations to match the process.

  • 304 or 316 stainless steel product-contact construction
  • Steam, electric, and spherical jacket heating options
  • Fixed, tilting, bare, scraper, paddle, and multi-agitation configurations
  • Sanitary discharge, hinged lids, CIP options, and temperature sensing
  • Built for food plants, central kitchens, and industrial cooking lines
Material
304 or 316 stainless steel
Heat transfer surface
Steam, electric, or spherical jacket heating options
Structure
Fixed, tilting, bare-kettle, or agitated configurations
Insulation
Optional
Agitation
Scraper, paddle, high-shear, single, or double agitator options
Motor
SEW or NORD drive options
Tank top
Hinged lids and CIP cleaning options
Tank bottom
Hemispherical body with center outlet
Ports
Sanitary clamp inlet and outlet connections
Legs
Adjustable stainless steel legs
Application
Cooking, mixing, and heating food products from 100 to 800 gallons
Request a Quote

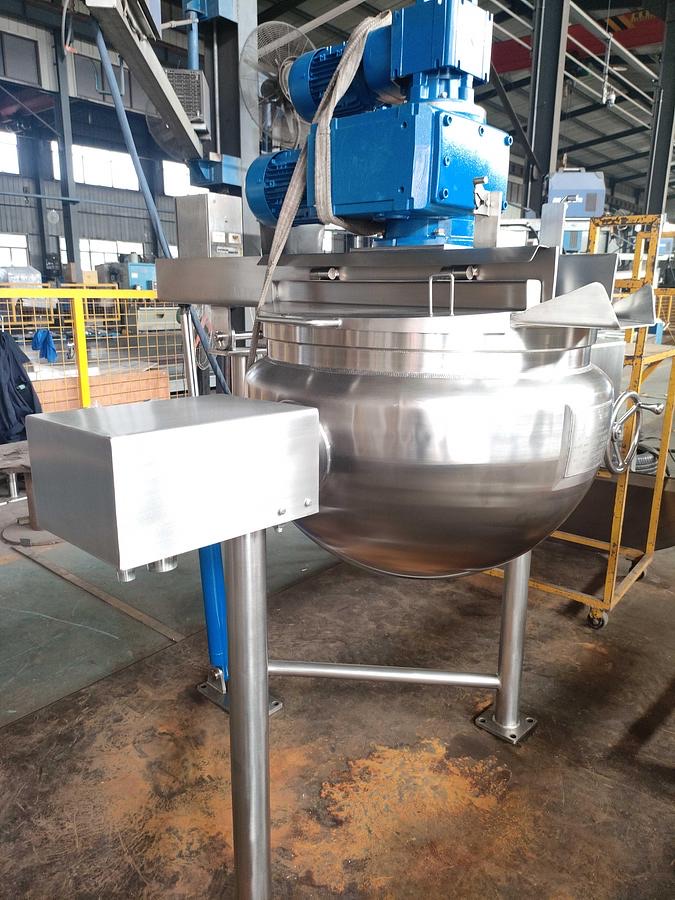

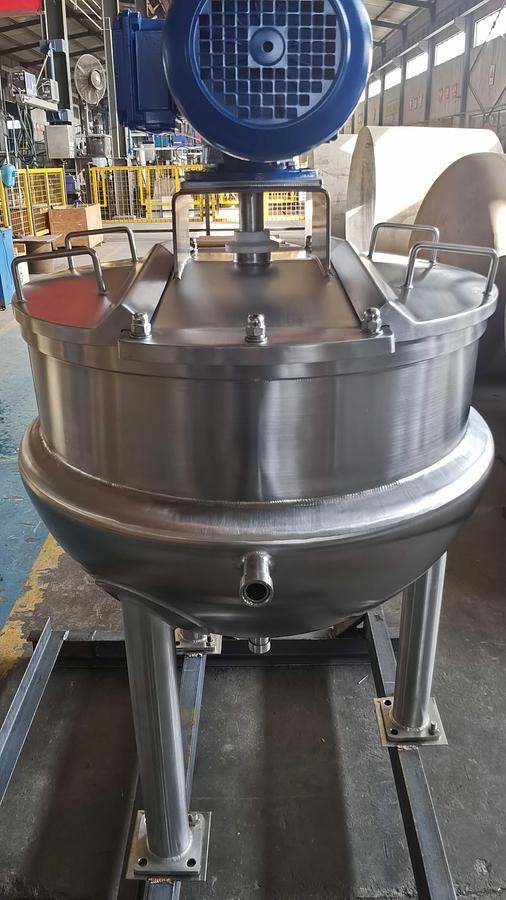

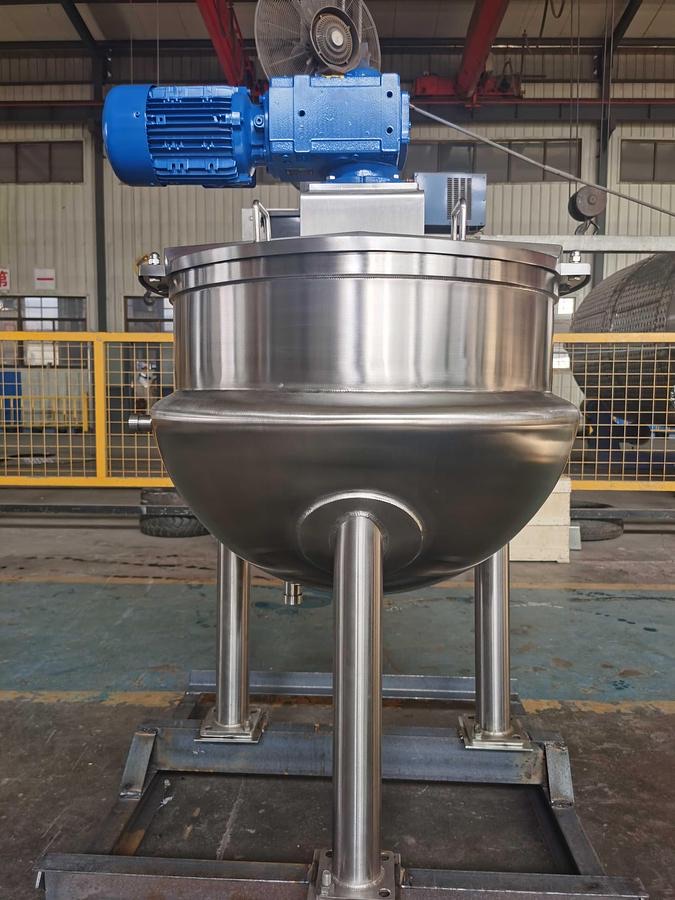

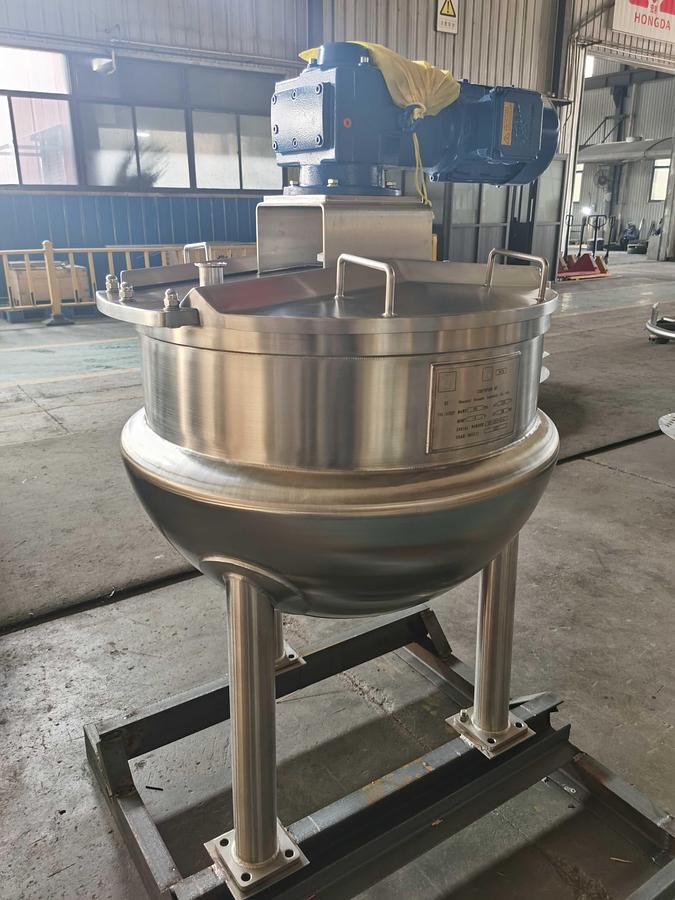

50 Gal Stainless Steel Steam Jacketed Mixing Kettle

50 Gal Stainless Steel Steam Jacketed Mixing Kettle

A 50 gallon steam-jacketed hemispherical kettle for commercial mixing and cooking.

The ASME-U stamped 90 psi jacket, scraper agitation, RTD sensor, spray balls, and pre-wired controller support hygienic small-batch production.

  • 316 stainless product-contact areas with 304 stainless non-contact construction
  • ASME-U stamped 90 psi steam jacket with NB registration
  • Scraper blade agitation driven by a 1.5 HP motor
  • 2 in. flush-mount bottom ball valve and tri-clamp additive ports
  • Safety grate, RTD sensor, digital temperature recorder, and emergency stop
Material
Stainless steel 316 for product contact area, 304 for other parts
Heat transfer surface
Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional
After-sales service
1 Year warranty
Surface treatment
Sanitary internal polished finish
Agitator

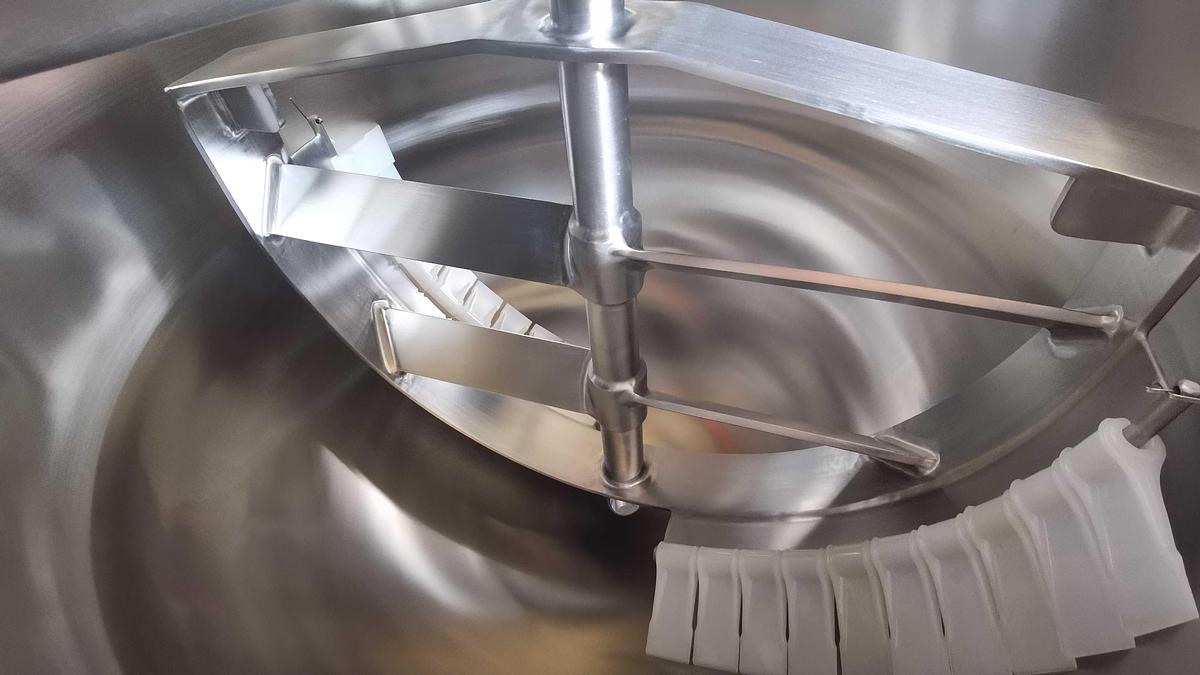

Agitator is scraper blade type
Controller
Included, digital temperature recorder, solenoid steam valve control feature
CIP cleaning

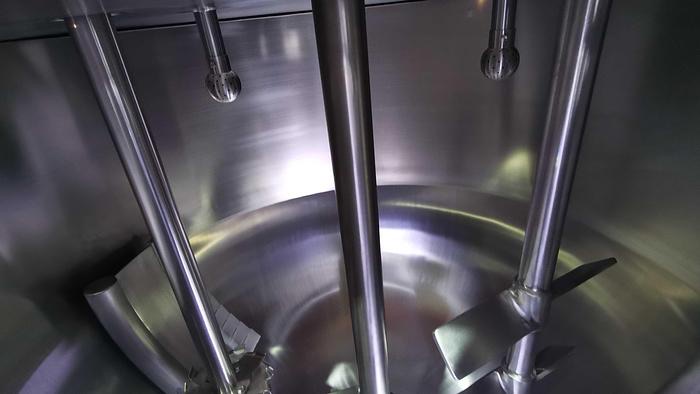

Spray balls included
Discharge
Flush mount ball valve, Pneumatic operation optional
Temperature sensor
Flush mount RTD sensor
Safety
With safety grate
Packing size
TBD
Options
Brake wheels, Steam regulating valve controller
Request a Quote

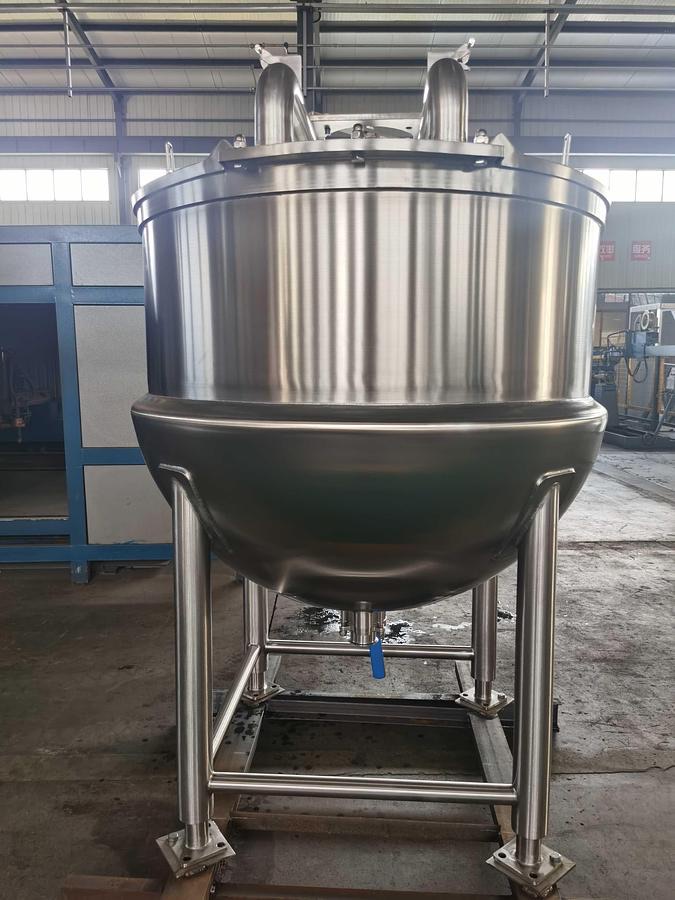

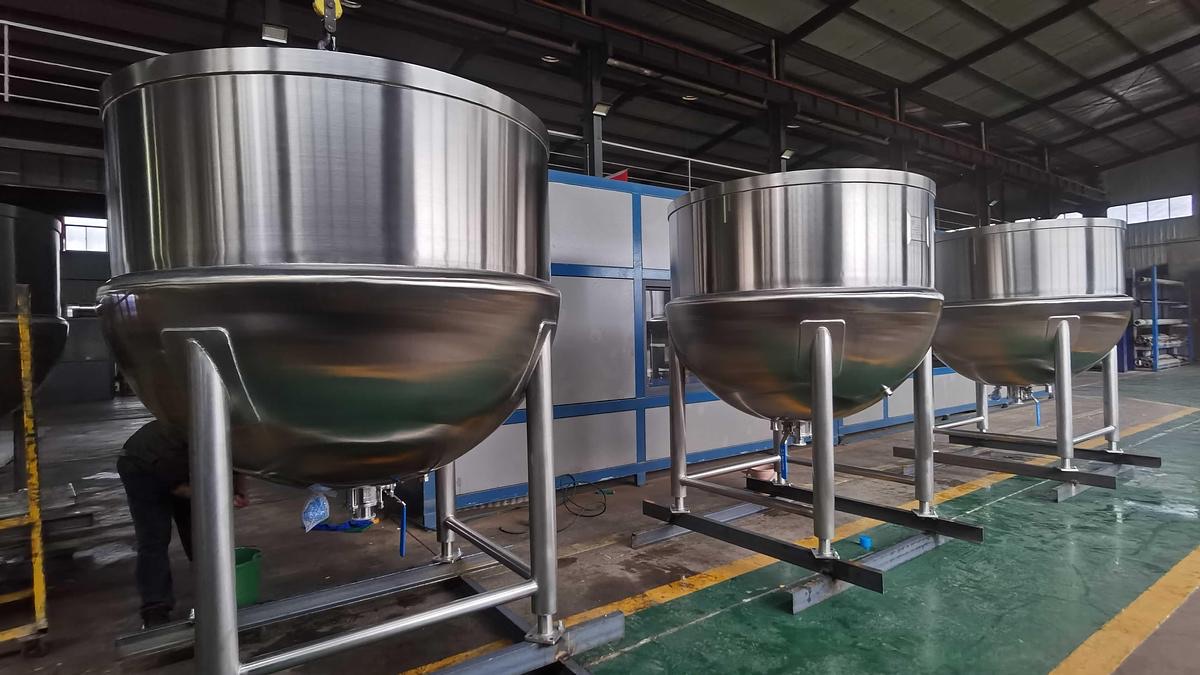

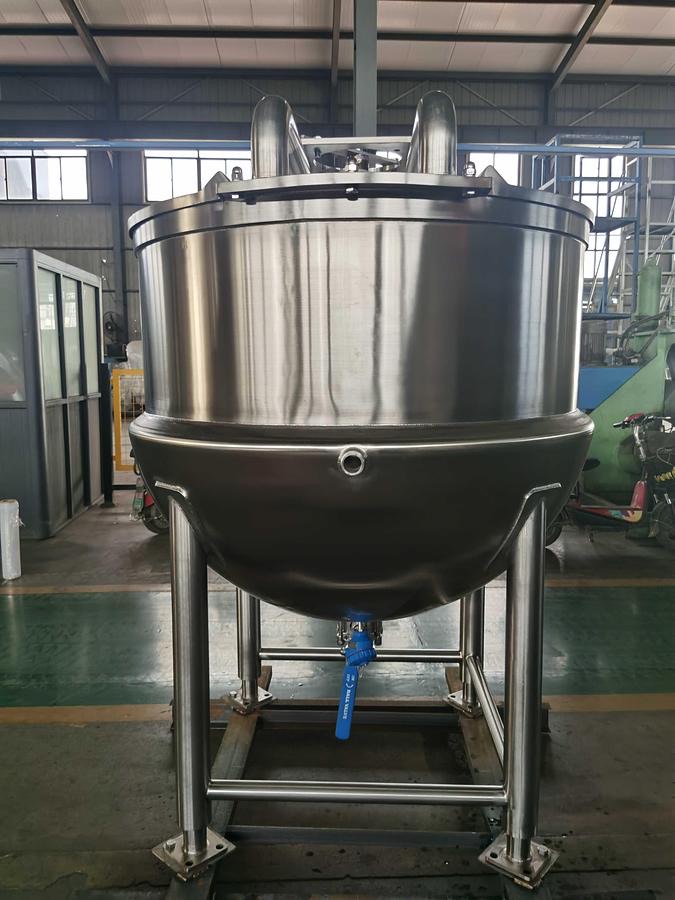

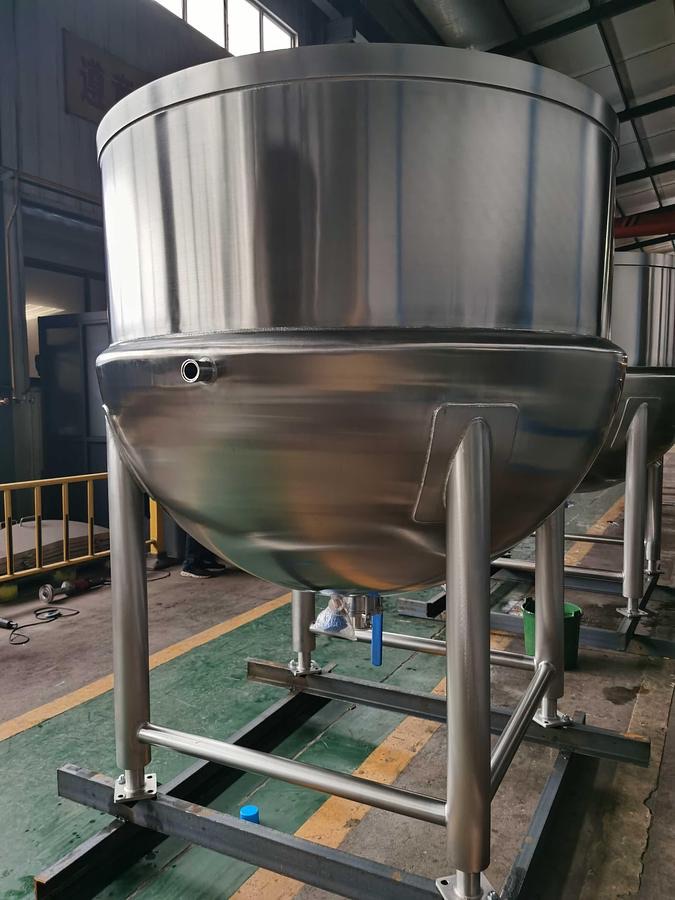

300 Gallon Steam Jacketed Bare Kettle

300 Gallon Steam Jacketed Bare Kettle

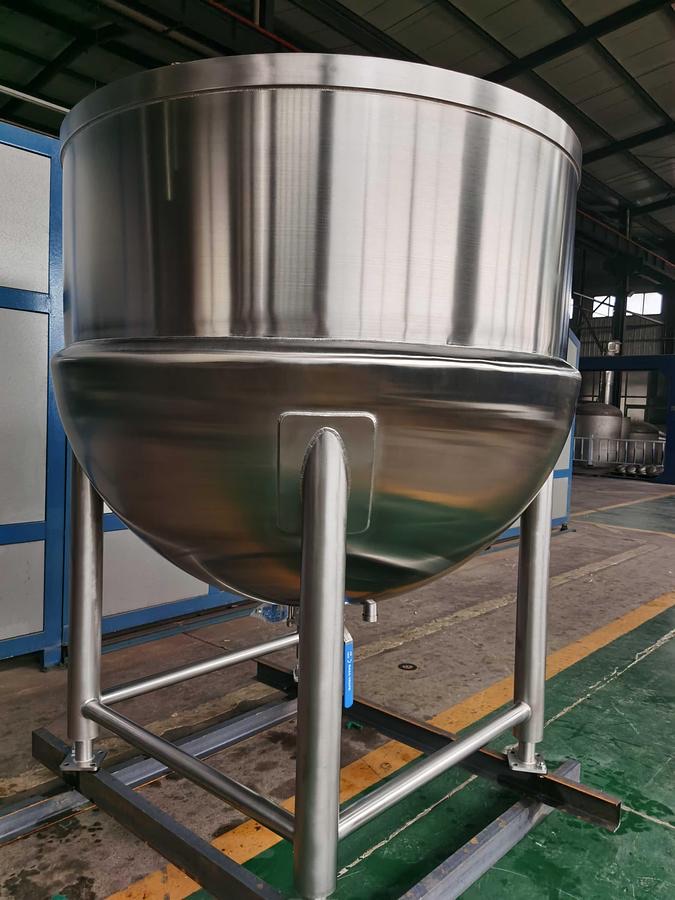

A 300 gallon steam-jacketed bare kettle for industrial cooking, heating, and holding applications.

The vessel includes a bridge for future agitator installation, hinged lids, sanitary bottom discharge, and an ASME-U stamped jacket.

  • Hemispherical stainless kettle body without agitator
  • 316 stainless product-contact areas with 304 stainless non-contact construction
  • ASME-U stamped 90 psi steam jacket with NB registration
  • Four-leg frame with flanged feet and hinged top lids

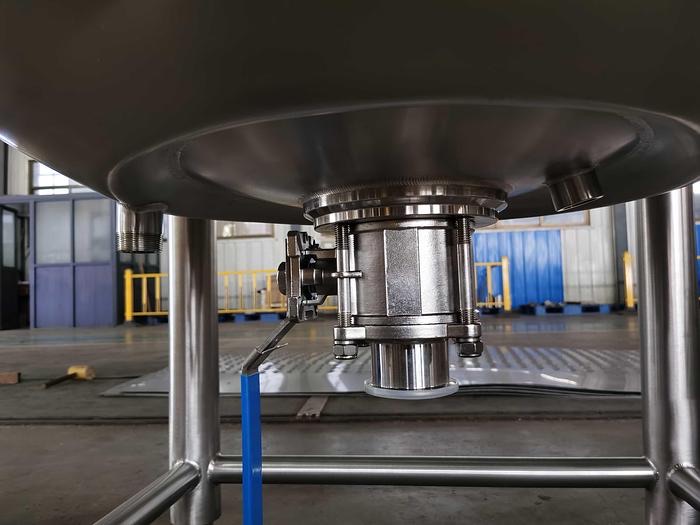

  • 3 in. center-bottom flush-mount ball valve discharge
Material
Stainless steel 316 for product contact area, 304 for other parts
Heat transfer surface
Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional
After-sales service
2 Year warranty
Surface treatment
Sanitary internal polished finish
Request a Quote

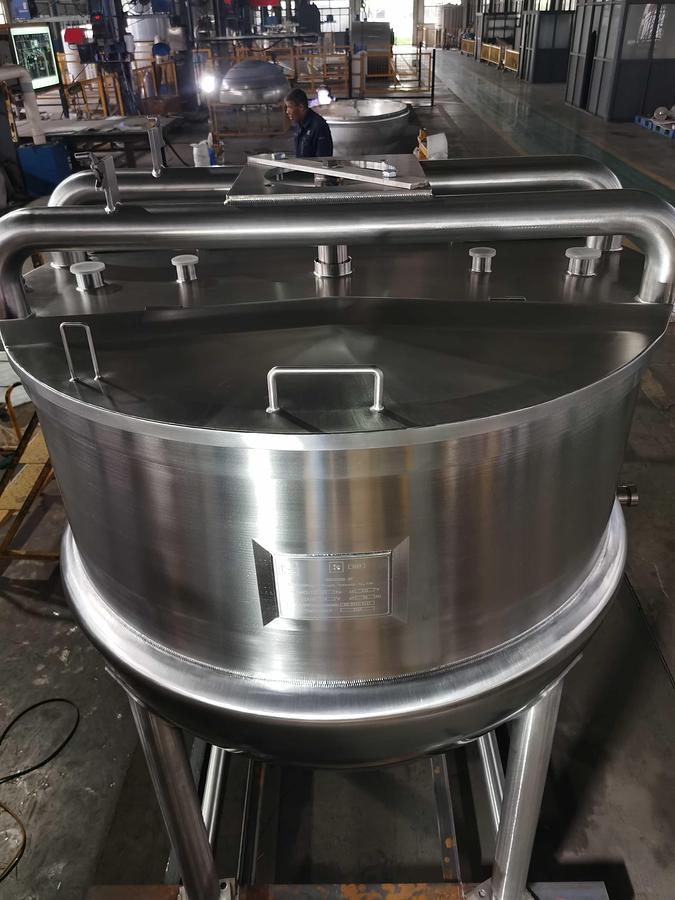

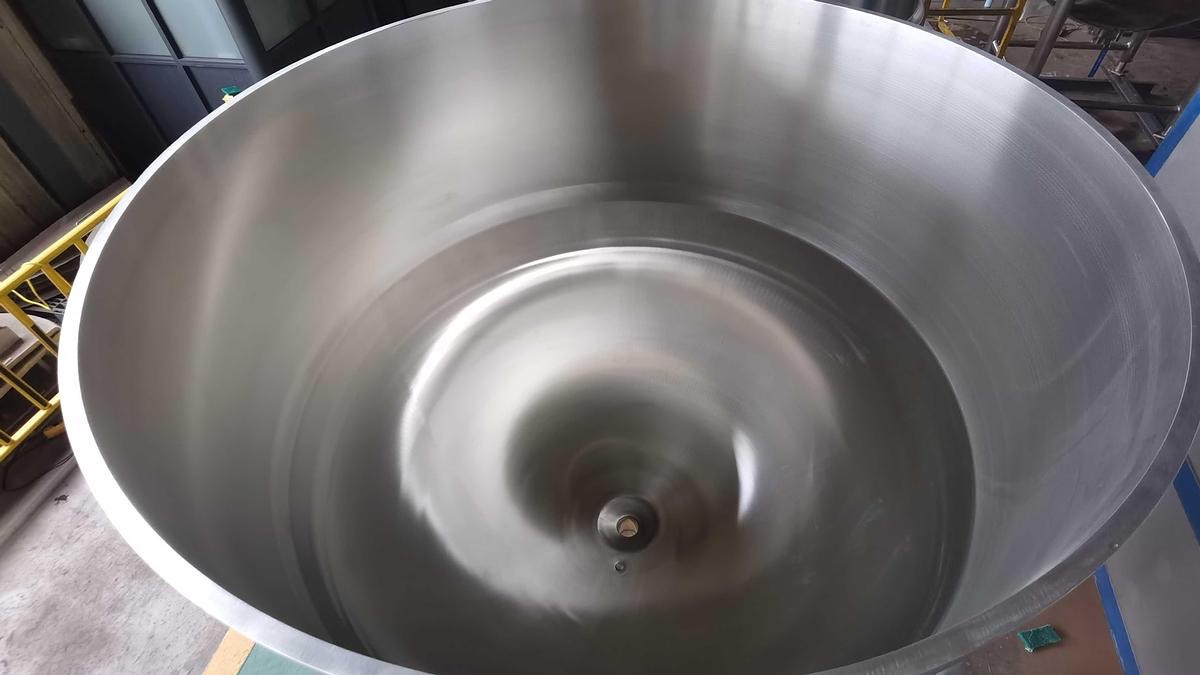

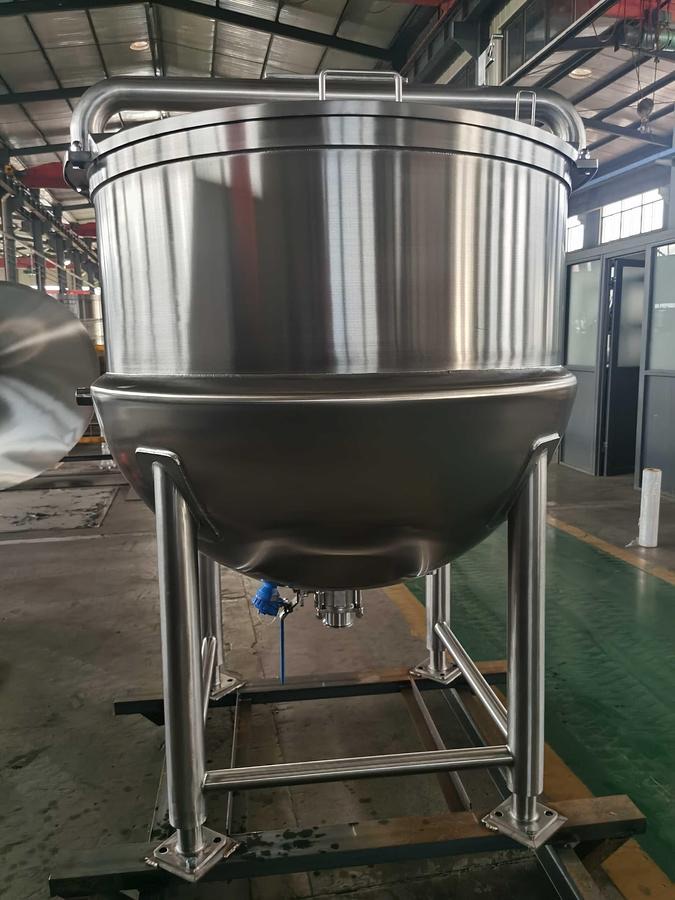

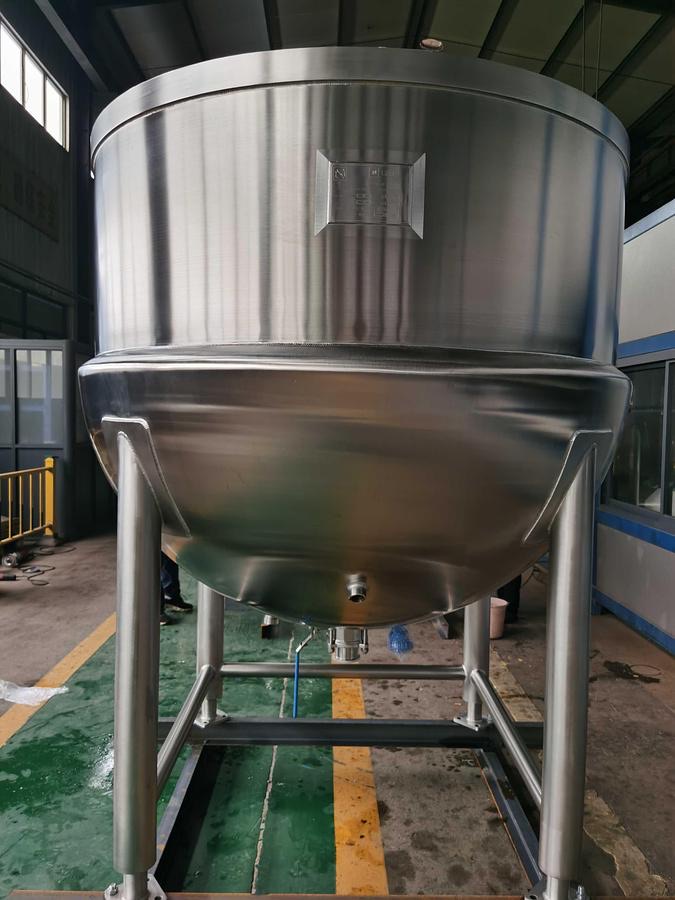

500 Gallon Stainless Steel Bare Jacketed Kettle

500 Gallon Stainless Steel Bare Jacketed Kettle

A 500 gallon stainless bare kettle for industrial cooking, heating, and holding where agitation is not required or will be added separately.

The ASME-U stamped steam jacket, sanitary internal finish, and center-bottom discharge make it ready for production-line integration.

  • Hemispherical bare kettle design without agitator
  • 316 stainless product-contact areas with 304 stainless non-contact construction
  • ASME-U stamped 90 psi steam jacket with NB registration
  • Four-leg body with flanged feet for stable installation
  • 3 in. center-bottom flush-mount ball valve discharge
Material
Stainless steel 316 for product contact area, 304 for other parts
Heat transfer surface
Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional
After-sales service
2 Year warranty
Surface treatment
Sanitary internal polished finish
Request a Quote

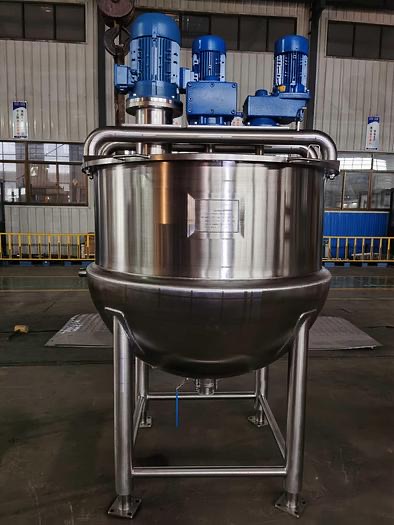

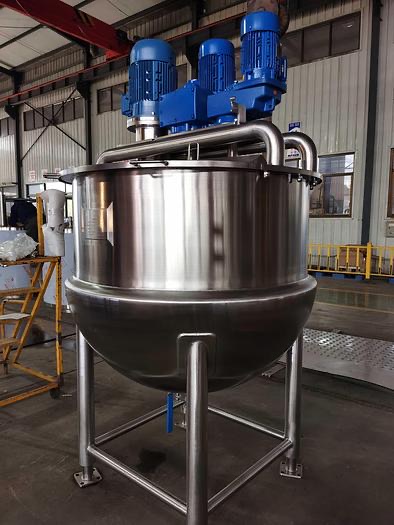

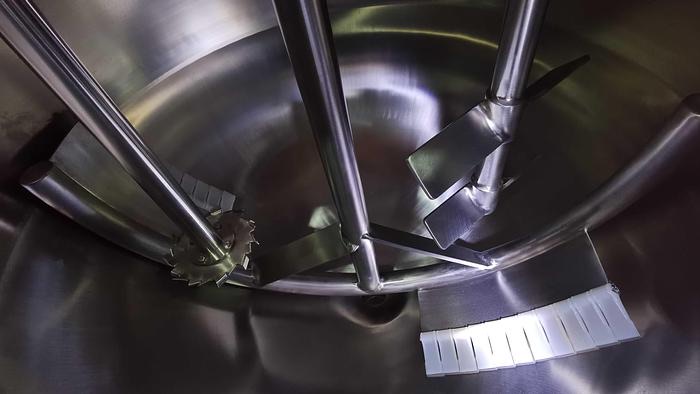

200 Gallon Triple Agitation Steam Jacketed Mixing Kettle

200 Gallon Triple Agitation Steam Jacketed Mixing Kettle

A 200 gallon ASME-rated steam-jacketed mixing kettle with triple agitation for demanding viscous products.

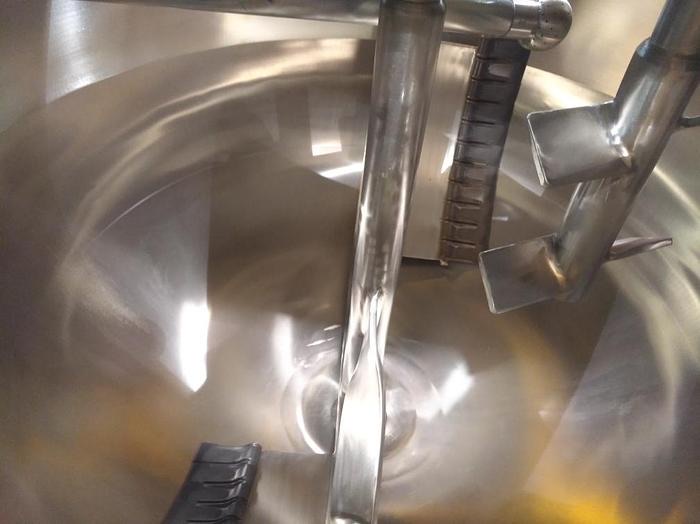

Scraping, paddle, and high-shear disperser agitation work together to improve wall contact, bulk movement, and dispersion in one cooking vessel.

  • 316 stainless product-contact areas with 304 stainless non-contact construction
  • ASME-U stamped 90 psi steam jacket with NB registration
  • Scraper, paddle, and high-shear disperser agitation package
  • UL-listed 4 HP, 2 HP, and 10 HP drive set
  • Controller, RTD sensor, spray balls, safety grate, emergency stop, and overcurrent protection
Material
Stainless steel 316 for product contact area, 304 for other parts
Heat transfer surface
Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional
After-sales service
2 Year warranty
Surface treatment
Sanitary internal polished finish
Drive
UL listed drive
Agitator

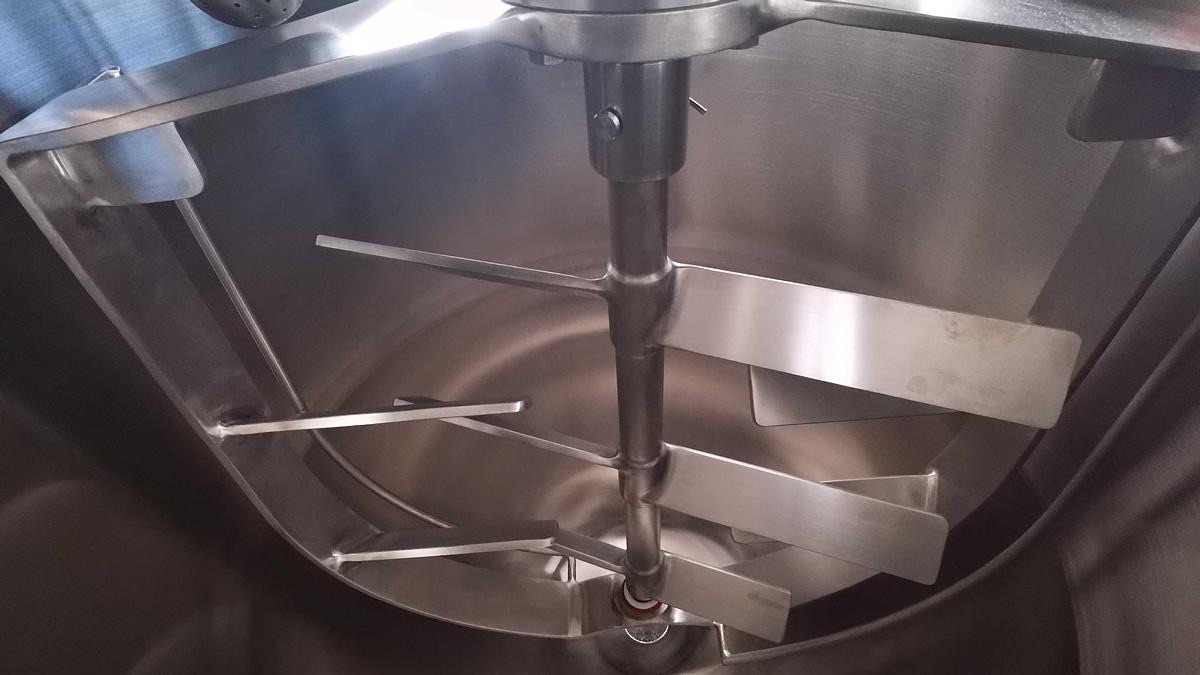

Coaxial double agitators, Scraping and Paddle type
Controller
Included, digital temperature recorder, solenoid steam valve control feature
CIP cleaning
Spray balls included
Discharge
Flush mount ball valve, Pneumatic operation optional
Temperature sensor
Flush mount RTD sensor
Safety
With safety grate
Options
Brake wheels, Steam regulating valve controller
Request a Quote

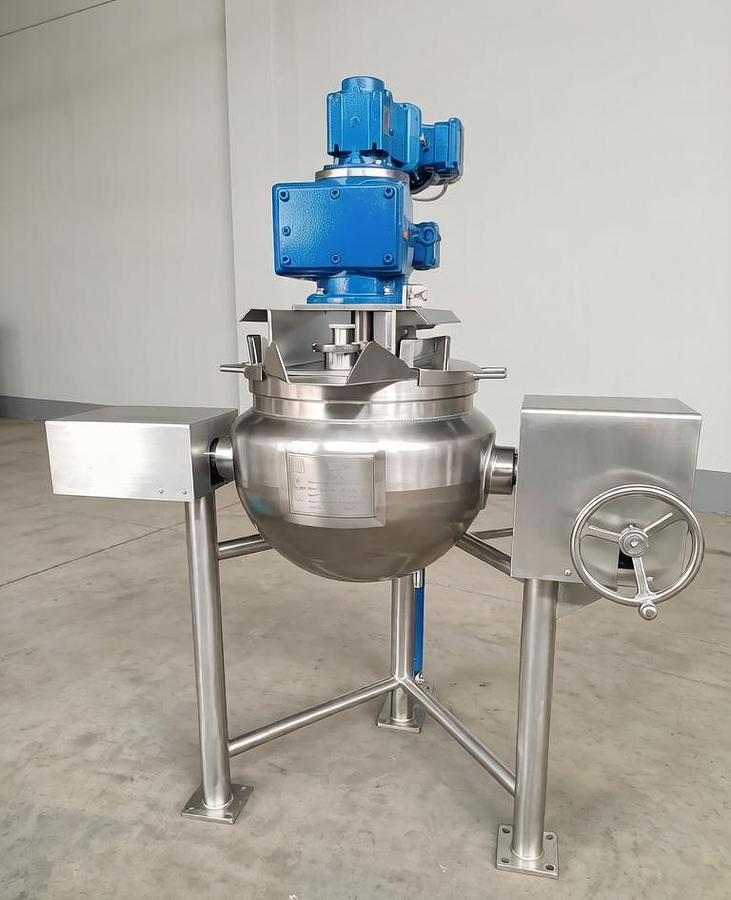

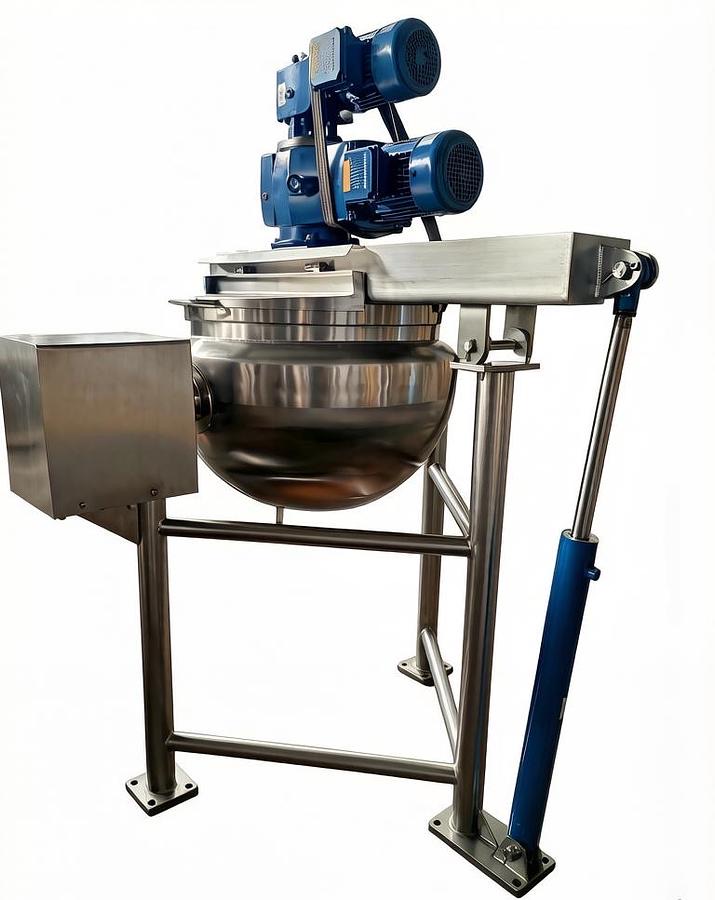

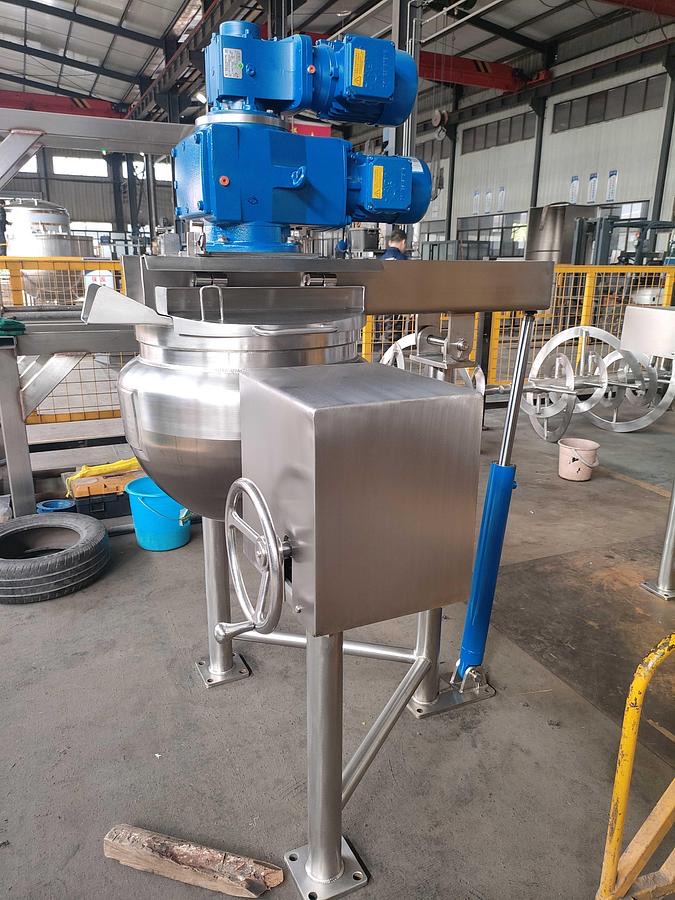

25 Gal Tiltable Scraped Surface Mixing Cooker

25 Gal Tiltable Scraped Surface Mixing Cooker

A 25 gallon tiltable scraped-surface cooker for pilot, test kitchen, and small commercial production batches.

The ASME steam jacket, scraper and paddle agitation, hydraulic agitator lift, and manual tilting body help simplify cooking and discharge.

  • 316 stainless product-contact areas with 304 stainless non-contact construction
  • ASME-U stamped 90 psi steam jacket with NB registration
  • Hydraulic agitator lift and manual handwheel kettle tilt
  • Scraper and paddle agitation with 1.5 HP and 1 HP UL-listed drives
  • Digital temperature recorder, safety grate, RTD sensor, spray balls, and emergency stop
Material
Stainless steel 316 for product contact area, 304 for other parts
Heat transfer surface
Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional
After-sales service
1 Year warranty
Surface treatment
Sanitary internal polished finish
Agitator
One agitator is scraper blade type, the other is Paddle type
Controller
Included, digital temperature recorder, solenoid steam valve control feature
CIP cleaning
Spray balls included
Discharge
Flush mount ball valve, Pneumatic operation optional
Temperature sensor
Flush mount RTD sensor
Safety
With safety grate
Packing size
TBD
Options
Brake wheels, Steam regulating valve controller
Request a Quote

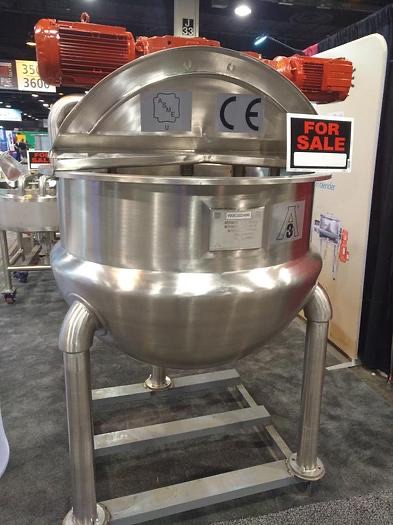

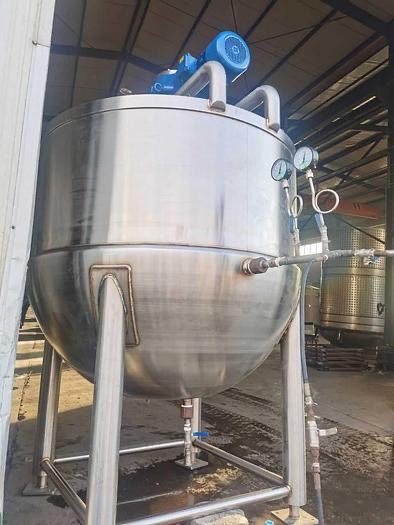

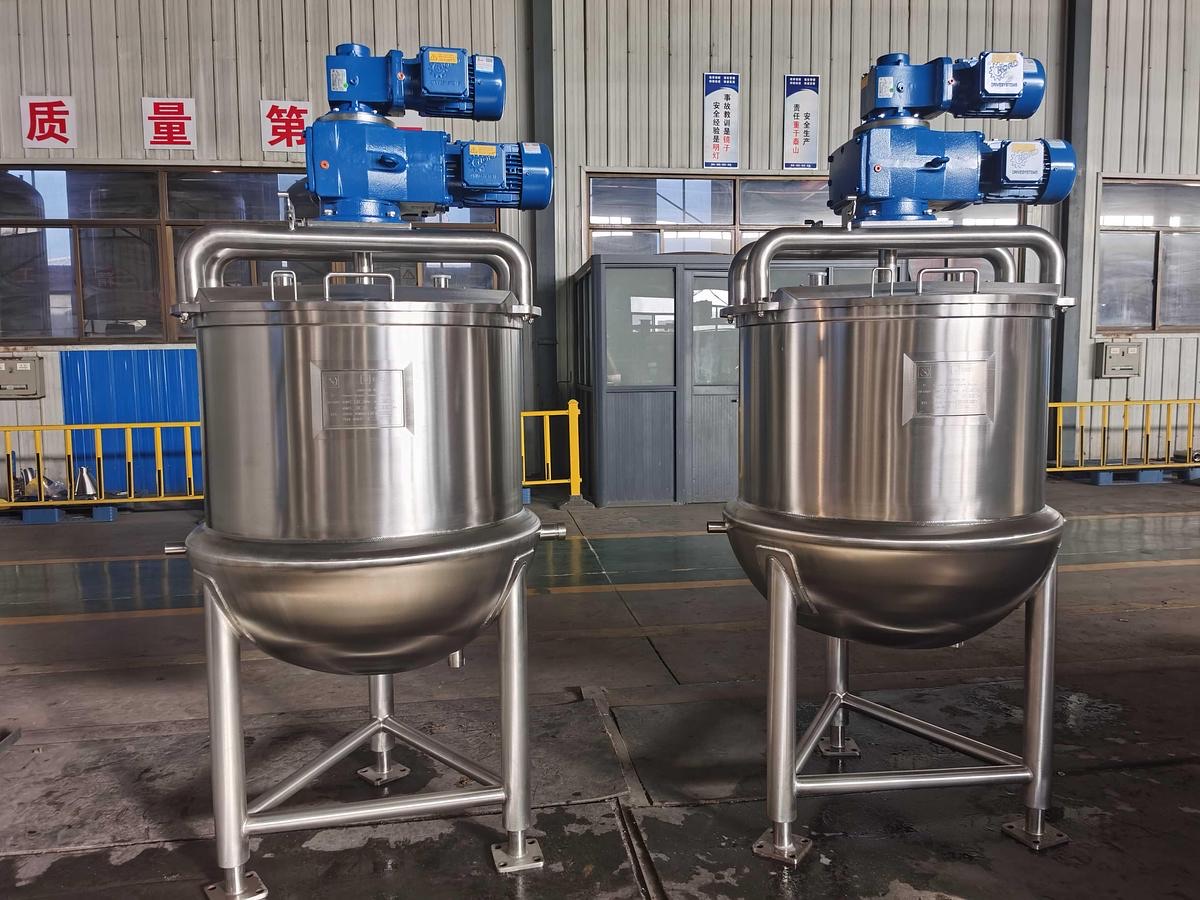

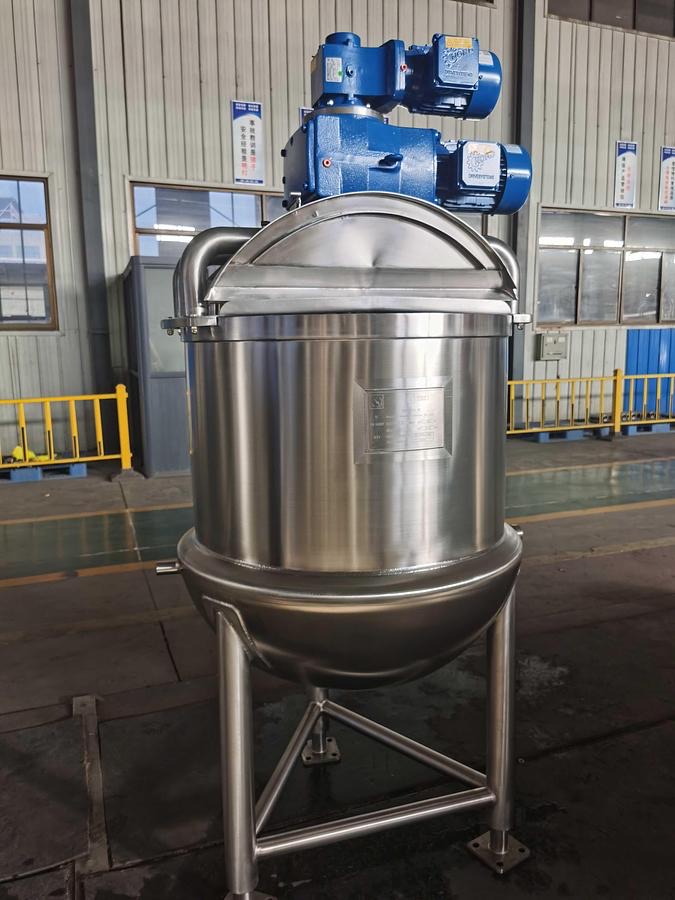

75 USG Steam Jacketed Dual Mixing Kettle

75 USG Steam Jacketed Dual Mixing Kettle

A 75 USG steam-jacketed dual mixing kettle for sanitary cooking and blending of thicker food and cosmetic products.

Scraper and offset paddle agitation improve wall contact and batch movement, while the 90 psi ASME jacket provides controlled heat transfer.

  • 316 stainless product-contact areas with 304 stainless non-contact construction
  • ASME-U stamped 90 psi steam jacket with NB registration
  • Scraper and offset paddle agitation with 2 HP and 1 HP UL-listed drives
  • 2 in. flush-mount bottom ball valve and tri-clamp additive ports
  • Controller, RTD sensor, spray balls, safety grate, emergency stop, and overcurrent protection
Material
Stainless steel 316 for product contact area, 304 for other parts
Heat transfer surface
Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional
After-sales service
1 Year warranty
Surface treatment
Sanitary internal polished finish
Agitator
One agitator is scraper blade type, the other is offset Paddle type
Controller
Included, digital temperature recorder, solenoid steam valve control feature
CIP cleaning
Spray balls included
Discharge
Flush mount ball valve, Pneumatic operation optional
Temperature sensor
Flush mount RTD sensor
Safety
With safety grate
Packing size
TBD
Options
Brake wheels, Steam regulating valve controller
Request a Quote

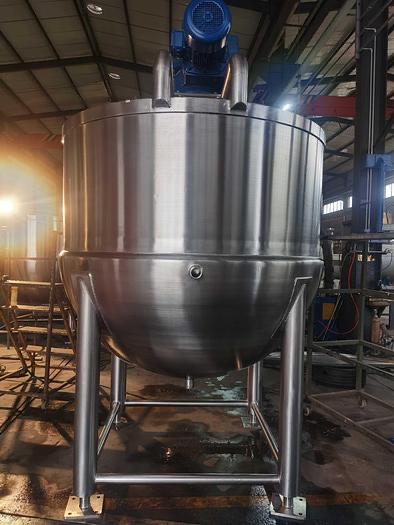

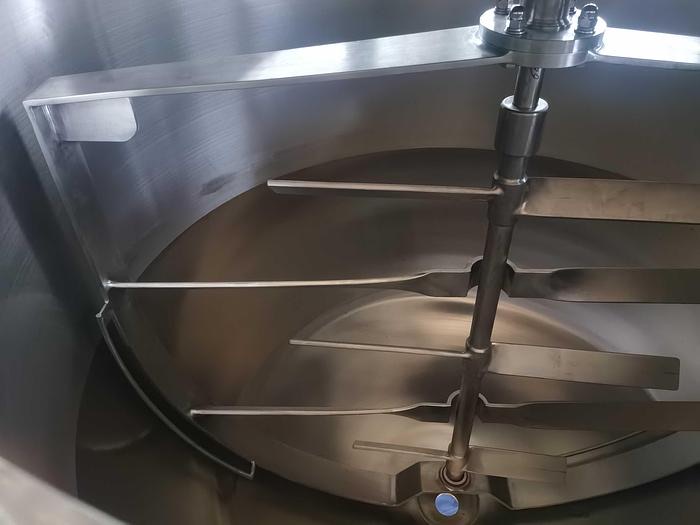

800 USG Steam Jacketed Dual Mixing Kettle

800 USG Steam Jacketed Dual Mixing Kettle

An 800 USG steam-jacketed dual mixing kettle for high-volume cooked products that need strong wall scraping and bulk turnover.

The large hemispherical vessel combines ASME-rated heating, coaxial scraper and paddle agitation, sanitary discharge, and a pre-wired controller package.

  • SS316L food-contact areas with SS304 non-contact construction
  • ASME-U stamped 90 psi steam jacket with NB registration
  • Coaxial scraper and paddle agitation with 12 HP and 5 HP UL-listed drives
  • 4 in. center-bottom flush-mount ball valve discharge
  • Controller, RTD sensor, spray balls, safety grate, emergency stop, and overcurrent protection
Material
SS316L for food contact area, SS304 for other parts with #4 finish
Heat transfer surface
Jacket rated at 90 Psi with ASME-U stamped and NB registered. CRN Optional
After-sales service
2 Year warranty
Surface treatment
Sanitary internal polished finish
Drive
UL listed drive
Agitator

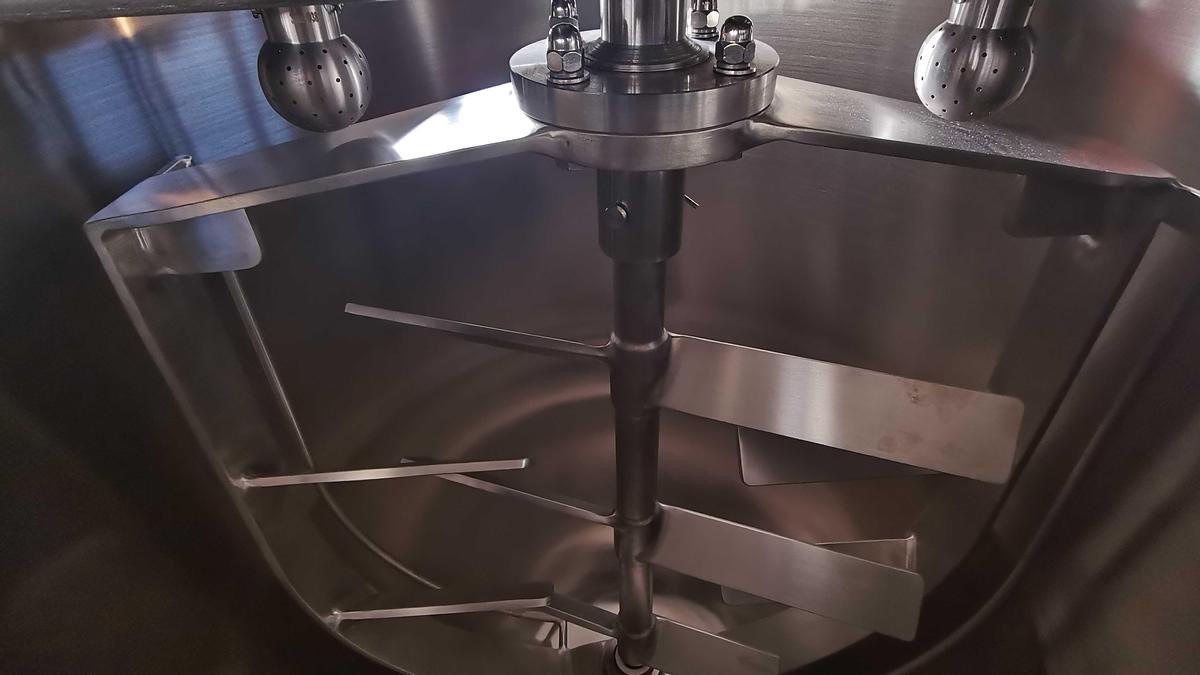

Coaxial double agitators, Scraping and Paddle type
Controller

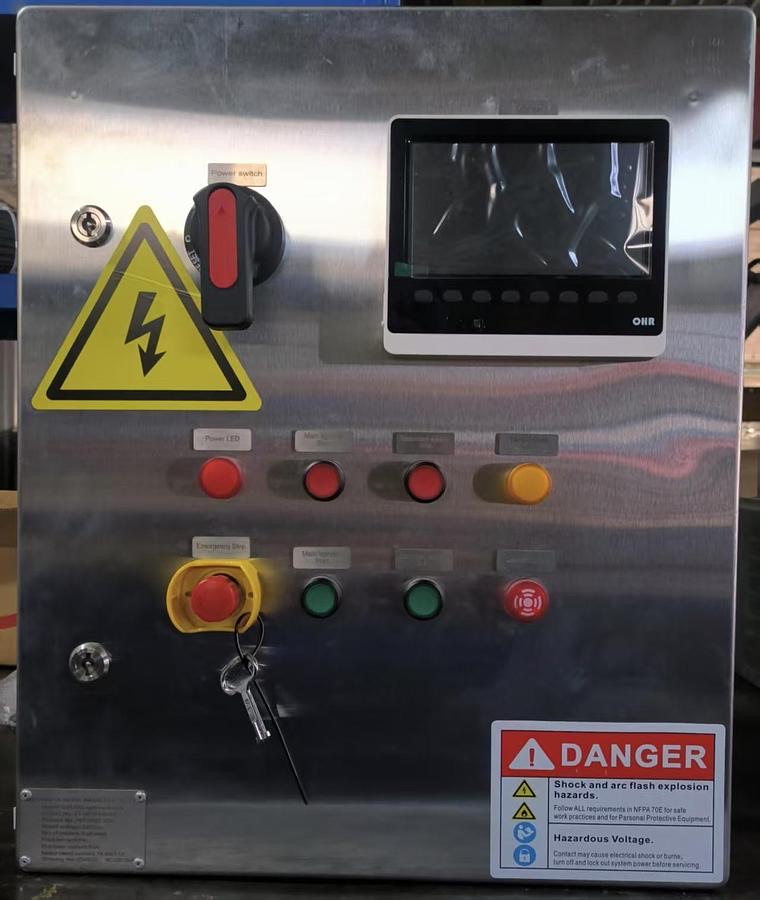

Included, digital temperature recorder, solenoid steam valve control feature
CIP cleaning
Spray balls included
Discharge
Flush mount ball valve, Pneumatic operation optional
Temperature sensor
Flush mount RTD sensor
Safety
With safety grate
Options
Brake wheels, Steam regulating valve controller
Request a Quote

Tell us what you produce.

Send your capacity, material and voltage requirements. We reply with options, drawings and pricing.
