Mixing Tank

Sanitary agitated tanks for liquid blending, dissolving and holding. Every unit is built in food-grade stainless steel, inspected before shipment, and exported with documentation handled by our Hong Kong office.

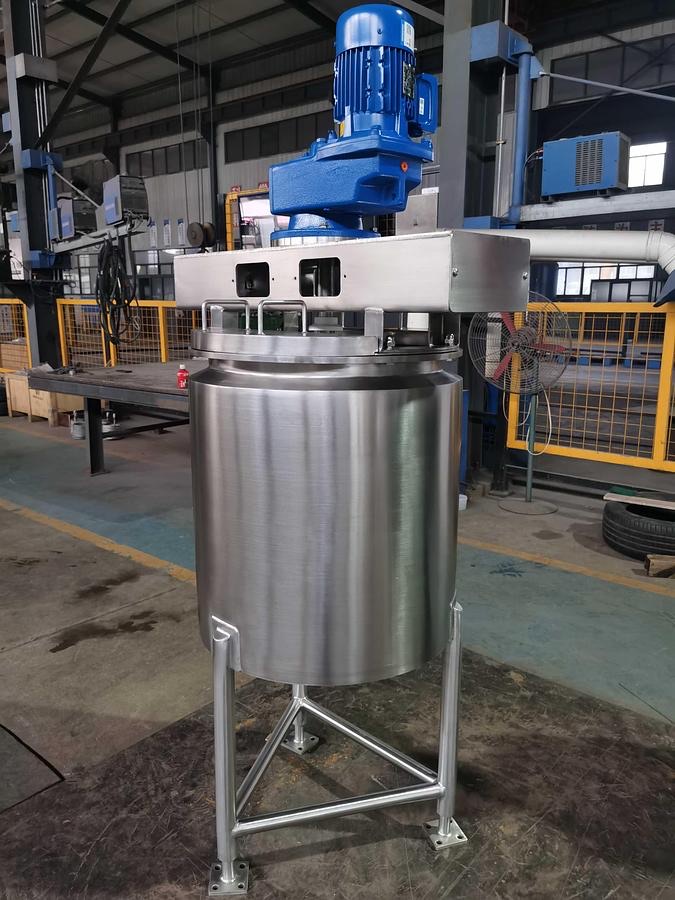

Mixing Tank

Mixing Tank

Sanitary stainless steel mixing tanks for heating, cooling, dissolving, blending, and holding liquid or semi-liquid products.

Available in single-wall or jacketed designs with configurable agitation, CIP cleaning, sanitary ports, and GMP/ASME-oriented construction.

  • 304 or 316 stainless steel contact construction with polished sanitary finishes
  • Single-wall, dimple-jacketed, insulated, cone-bottom, and dish-bottom options
  • Custom agitation packages including scraper, paddle, ribbon, and high-shear systems
  • Sanitary clamp connections, CIP cleaning, and adjustable stainless steel legs
  • Built for food, beverage, cosmetic, pharmaceutical, and chemical processing
Material
304 or 316 stainless steel
Exterior construction
304 stainless steel with #4 or #28 finish
Heat transfer surface
Side and bottom stainless steel dimple jacket rated for 75 psi
Insulation
2 in. polyurethane insulation
Agitation
Single, double, scraper, paddle, ribbon, or custom agitator options
Motor
SEW or NORD drive options
Tank top
Inverted cone head with hinged lids and CIP cleaning
Tank bottom
Conical, dish, sloped, or flat-bottom options
Ports
Sanitary clamp inlet and outlet connections
Legs
Adjustable stainless steel legs
Application
Food, beverage, cosmetic, pharmaceutical, and chemical processing
Request a Quote
1200 Gallon Steam Jacketed Single Mixing Tank

1200 Gallon Steam Jacketed Single Mixing Tank

A 1200 gallon steam-jacketed mixing tank for large sanitary cooking, heating, blending, and holding applications.

The ASME-stamped jacket, insulated body, scraped-surface agitation, and center-bottom discharge are configured for production-scale liquid processing.

  • SUS316 product-contact surfaces with SUS304 non-contact construction
  • ASME-U stamped 75 psi steam jacket with 2 in. rock wool insulation
  • Single-motion scraped-surface agitation mounted from the bridge
  • 3 in. center-bottom sanitary tri-clamp discharge
  • Dome top with manway, CIP cleaning, sanitary ports, and adjustable legs
Lead time
3 months
Payment term
50% deposit, 50% before picking up from our warehouse in CA
Request a Quote

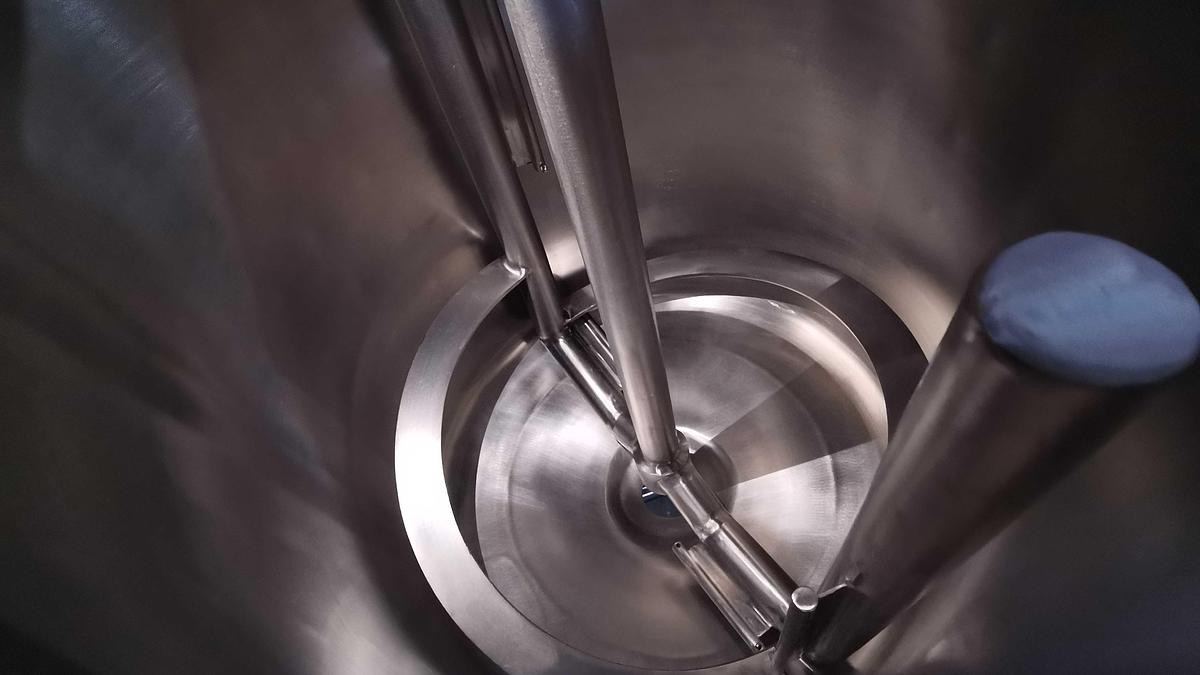

Helical Ribbon Scraper Blade Mixer with 75 psi Steam Jacket

Helical Ribbon Scraper Blade Mixer with 75 psi Steam Jacket

A steam-jacketed helical ribbon scraper mixer for viscous products that need heating and consistent wall-surface movement.

The 75 psi ASME-stamped jacket, vertical ribbon agitation, sanitary discharge, and insulated stainless body support production from 30 to 3000 gallons.

  • SUS316 product-contact surfaces with SUS304 non-contact construction
  • ASME-U stamped 75 psi steam jacket with 2 in. rock wool insulation
  • Bridge-mounted vertical ribbon and scraped-surface agitation
  • Conical bottom with center sanitary tri-clamp discharge
  • Top lids, sanitary clamp ports, and adjustable stainless steel legs
Lead time
3 months
Payment term
50% deposit, 50% before picking up from our warehouse in CA
Request a Quote

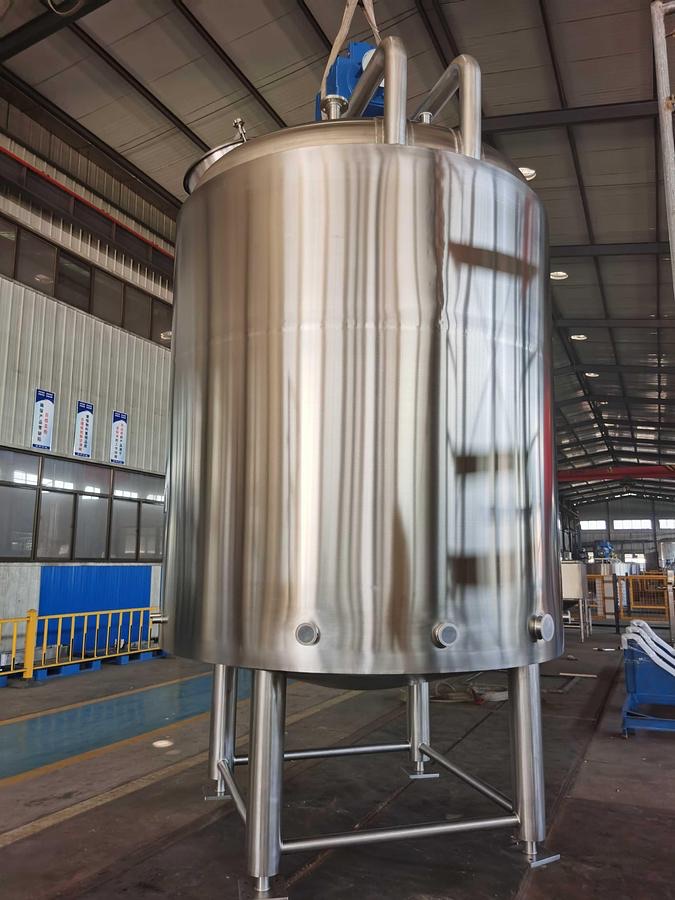

ASME-U Coded Jacketed Single Mixing Tank

ASME-U Coded Jacketed Single Mixing Tank

A configurable ASME-U coded jacketed mixing tank platform for 100 to 3000 gallon working capacities.

The stainless vessel can be specified with custom agitators, jacket ratings, top styles, controls, casters, and access features to match the process.

  • SUS316 product-contact surfaces with SUS304 non-contact construction
  • ASME-U stamped jacket available from 30 to 150 psi
  • Custom agitator options including scraper, sweep, paddle, and high shear disperser
  • Insulated stainless body with sanitary center-bottom discharge
  • Configurable top, controller, casters, ladder, and process accessories
Jacket
Rated at 30-150Psi with ASME stamp
Agitator
Scraper blade, sweep, paddle, high shear disperser type, etc.
Tank top
Slop lids, dished, plain type, etc.
Options
Controller, caster, ladder, etc.
Lead time
3 months
Payment term
50% deposit, 50% before picking up from our warehouse in CA
Request a Quote

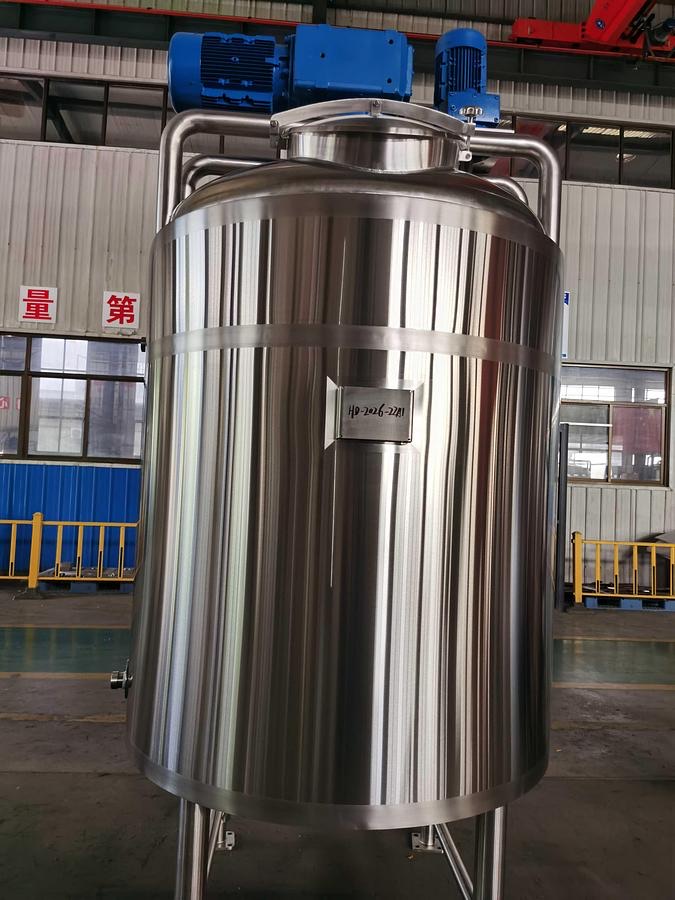

550 Gallon Jacketed Buffer Tank-Scraper Blade & Vertical Auger Agitator

550 Gallon Jacketed Buffer Tank-Scraper Blade & Vertical Auger Agitator

A 550 gallon jacketed buffer tank with scraper blade and vertical auger agitation for thick or slow-moving products.

The dual-action agitation, steam jacket, sanitary discharge, and 316L product-contact surfaces support heating, holding, and controlled transfer.

  • 316L stainless product-contact construction with 304 stainless non-contact parts
  • Steam jacket and insulated sanitary vessel for temperature control
  • Scraper blade and vertical auger agitation for higher-viscosity products
  • Center-bottom sanitary discharge for controlled emptying
  • Designed for buffer, holding, mixing, and cooking duties
Material
Stainless steel 316 for product contact area, 304 for other parts
Heat transfer surface
Jacket rated at 75 Psi with ASME-U stamped and NB registered. CRN Optional
After-sales service
2 Year warranty
Surface treatment
Sanitary internal polished finish
Drive
UL listed drive
Agitator
Scraper Blade type & Vertical Auger Agitator
Controller
Optional
CIP cleaning
Spray balls included
Discharge
Flush mount ball valve, Pneumatic operation optional
Temperature sensor
Flush mount RTD sensor
Safety
With safety grate
Request a Quote

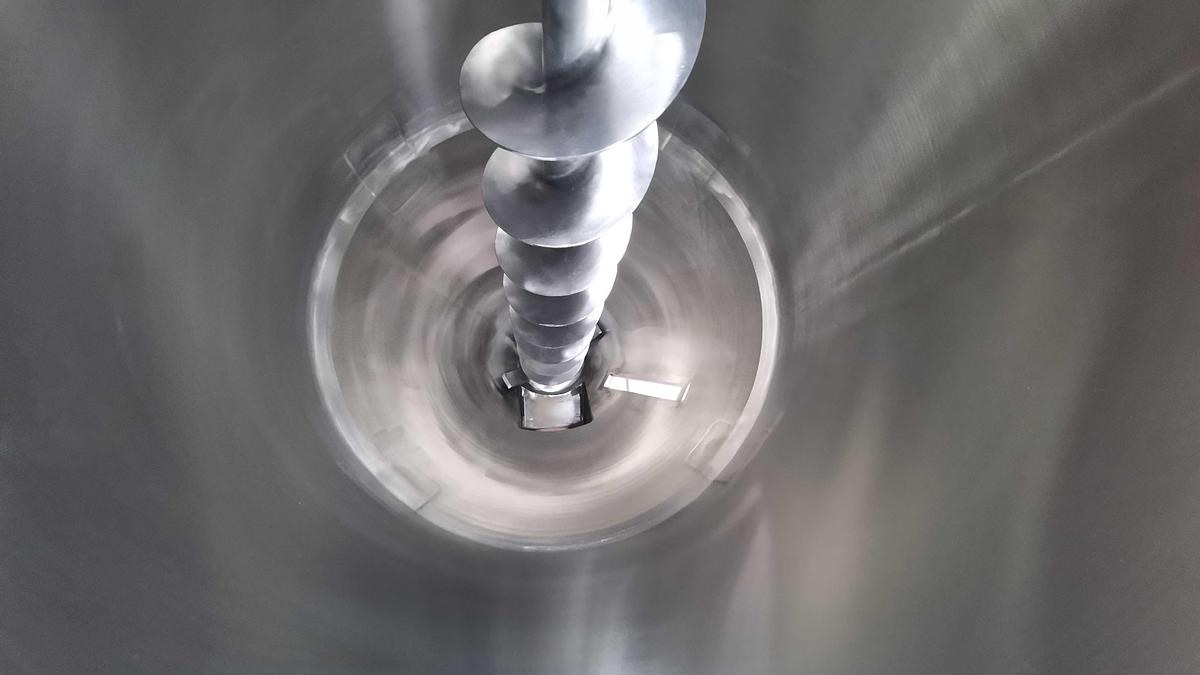

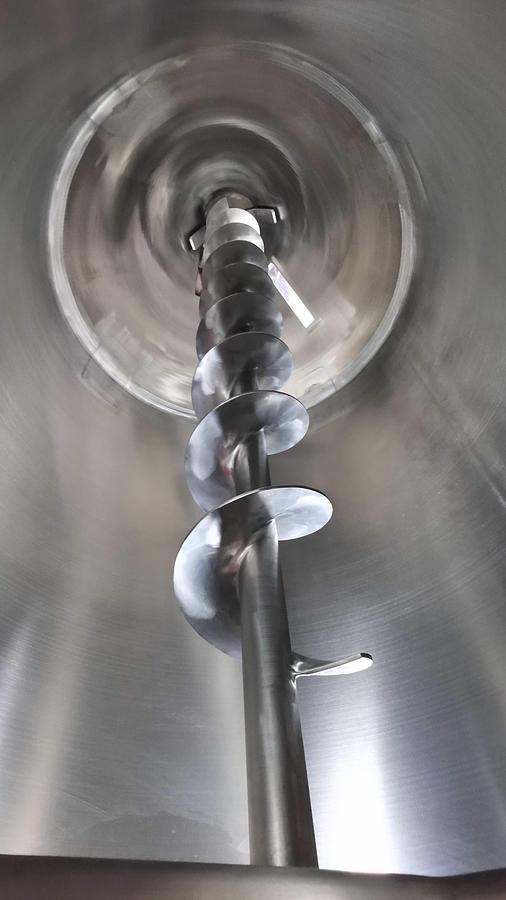

500 Gal Vertical Auger Agitator Mixing Hopper

500 Gal Vertical Auger Agitator Mixing Hopper

A 500 gallon vertical auger mixing hopper for industrial batch blending and controlled product movement.

The stainless construction, jacketed body, and auger agitation are suited to dense liquids, slurries, and semi-solid materials that need steady turnover.

  • SUS316 product-contact surfaces with SUS304 non-contact construction
  • Vertical auger agitation for product lifting and circulation
  • Jacketed stainless vessel for heating or temperature holding
  • Sanitary discharge and process connections
  • Built for industrial food, dairy, cosmetic, and chemical batches
Lead time
3 months
Payment term
50% deposit, 50% before picking up from our warehouse in CA
Request a Quote

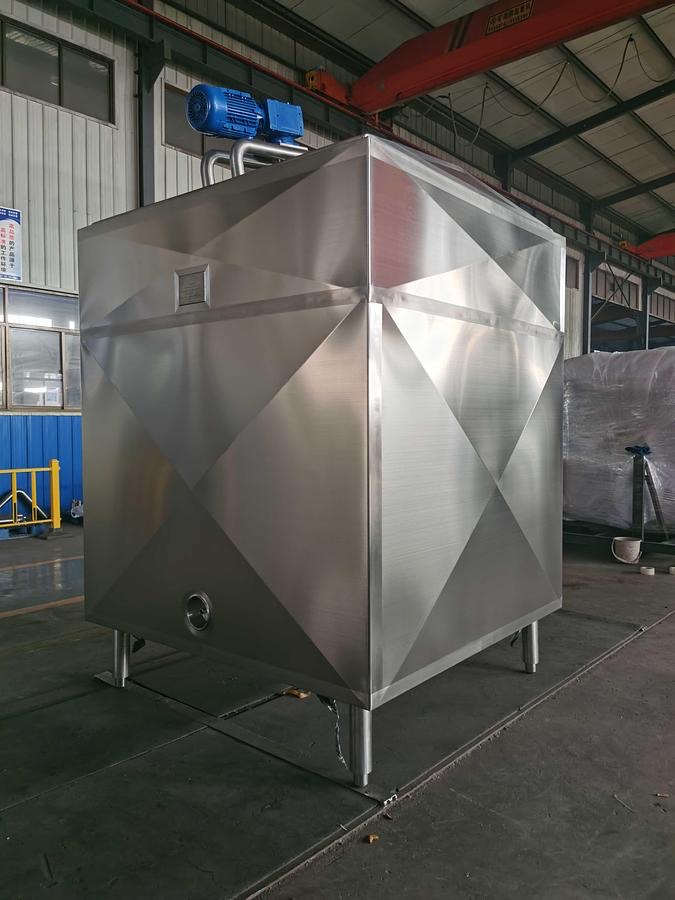

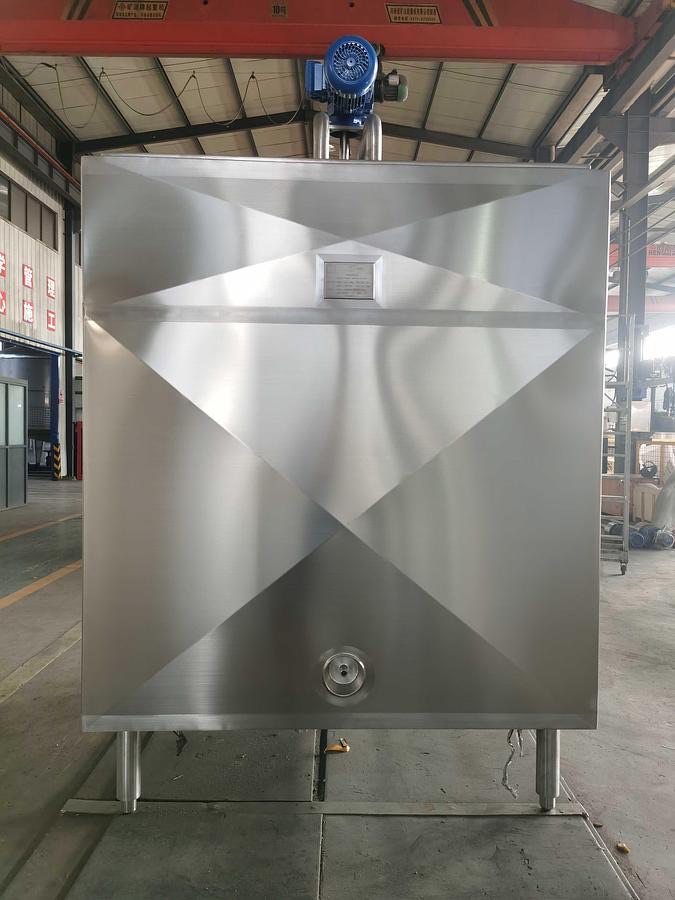

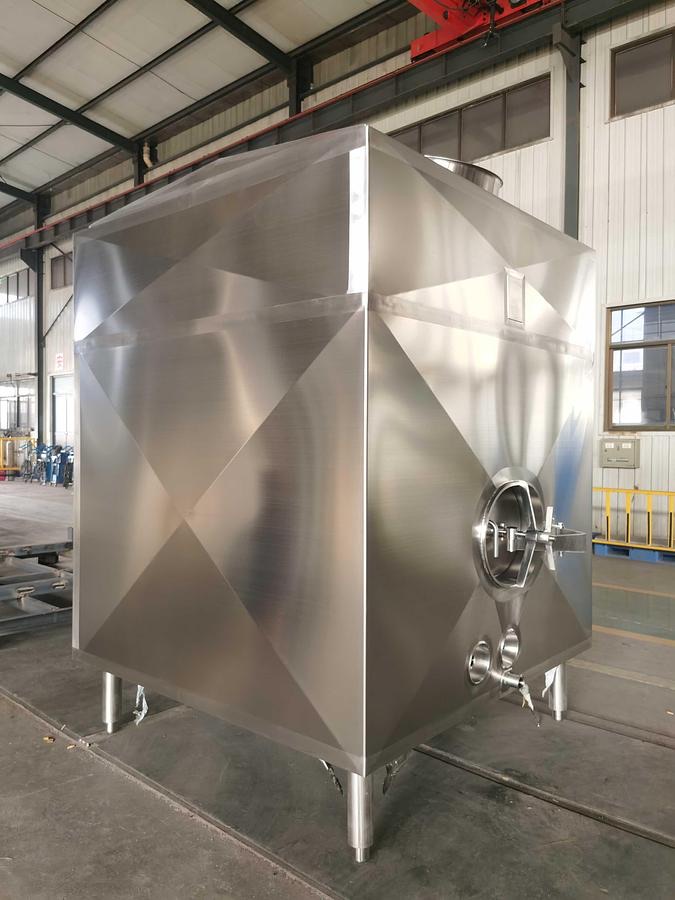

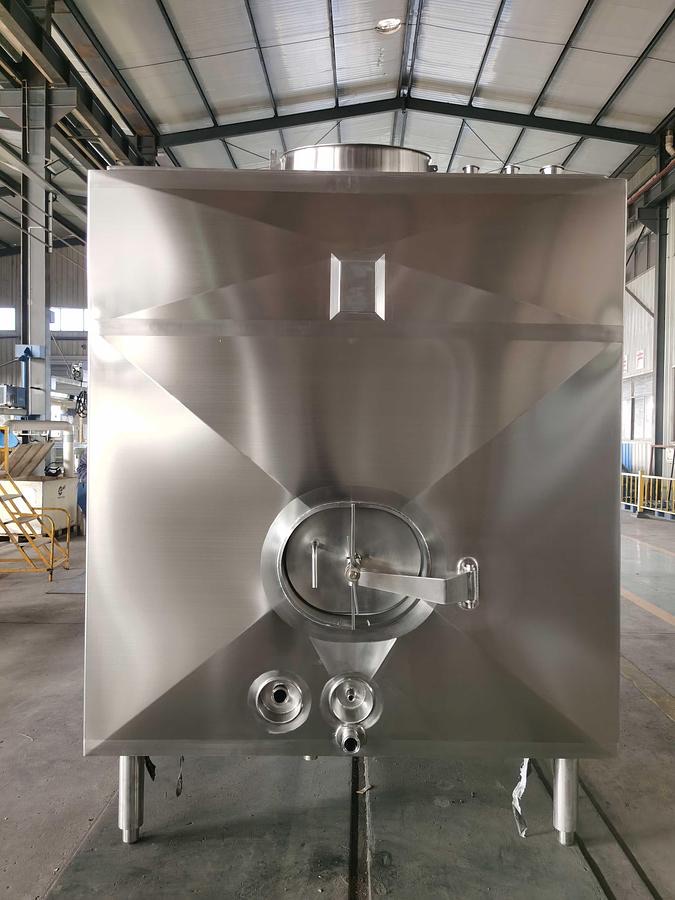

1500 Gal Stainless Steel Rectangular Mixing Tank

1500 Gal Stainless Steel Rectangular Mixing Tank

A 1500 gallon rectangular stainless mixing tank configured for ice cream and dairy batch processing.

The ammonia-compatible heat exchange zone, paddle agitation, sanitary manways, and pre-wired controls support chilled or temperature-managed production.

  • Type 304 stainless steel with #4 polished product-contact zone
  • Bottom heat exchange zone rated for 150 psi with U1 certificate
  • Vertical paddle agitation with 3 HP UL-listed motor
  • Top and front-entry manways with removable gaskets
  • Pre-wired control package with temperature recording and safety features
Material
SS304
Heat transfer surface
Bottom only code stamped heat exchange zone rated for 150 psi
After-sales service
1 Year warranty
Surface treatment
Sanitary internal polished finish
Agitator
Vertical paddle-type ice cream mix agitator, 2 impellers
Controller
Included, digital temperature recorder, solenoid steam valve control feature
CIP cleaning
Spray balls included
Discharge
Bottom of sidewall with 2" Tri-Clamp outlet port
Temperature sensor
Flush mount RTD sensor
Safety
With safety grate
Packing size
TBD
Options
Brake wheels, Steam regulating valve controller
Request a Quote

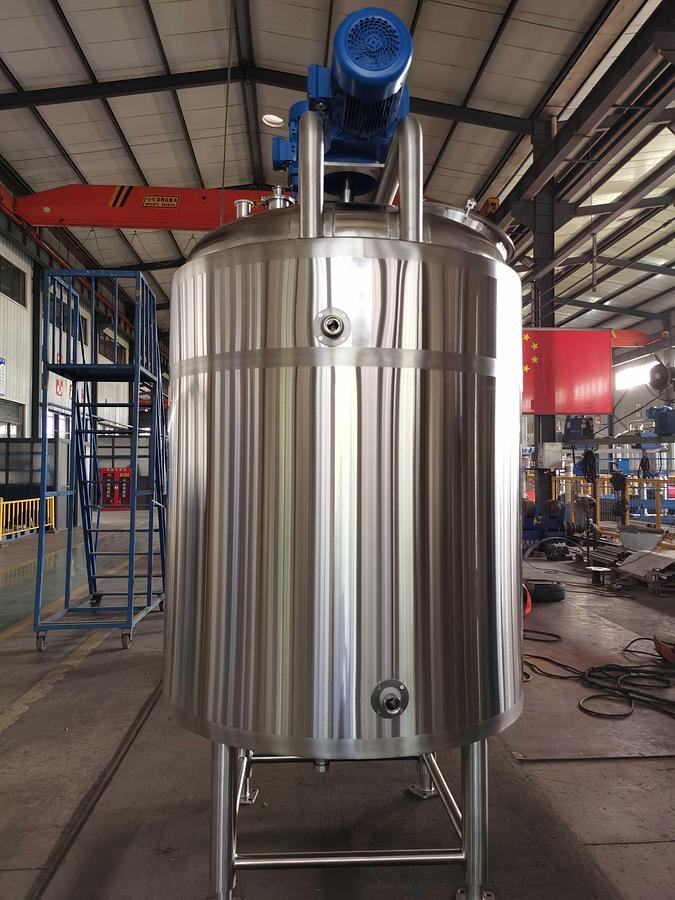

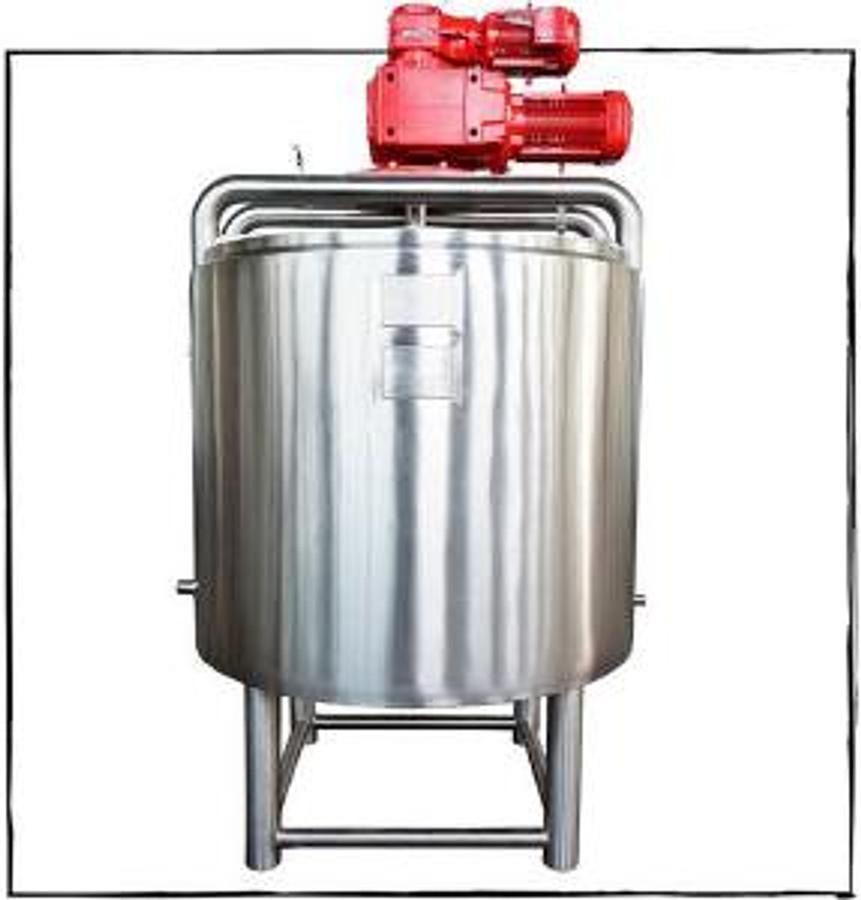

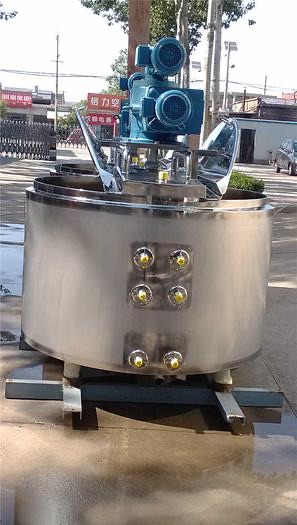

250 Gallon Double Motion Jacketed Mixing Tank

250 Gallon Double Motion Jacketed Mixing Tank

A 250 gallon jacketed mixing tank with double-motion agitation for products that need heating and strong circulation.

The stainless vessel combines jacketed temperature control with coordinated agitator movement for sauces, creams, emulsions, and viscous blends.

  • 250 gallon stainless steel jacketed vessel
  • Double-motion agitation for improved turnover and wall contact
  • Sanitary polished product-contact surfaces
  • Designed for heating, mixing, cooking, and holding applications
  • Suitable for food, cosmetic, pharmaceutical, and chemical production
Material
316L stainless steel interior with 304 stainless steel exterior
Exterior construction
304 stainless steel with Ra32 finish
Heat transfer surface
Dimple jacket rated at 75 psi
Insulation
2 in. polyurethane insulation with stainless outer sheathing
Agitation
Double agitators: scraper blade and paddle type
Motor
SEW or NORD drive options
Tank top
Inverted cone top with 15 degree slope head and hinged lids
Tank bottom
Conical bottom with center outlet
Ports
Sanitary clamp connections as required
Legs
Adjustable stainless steel legs
Request a Quote
